High-Precision CNC Machining and Custom Manufacturing of Aluminum Mechanical Supports

We specialize in five-axis precision machining of mechanical supports, equipped with high-end five-axis CNC machine tools and professional testing systems. From complex structural design to mass production, we provide end-to-end manufacturing services, ensuring that each support possesses superior structural strength, precise assembly fit, and stable load-bearing performance, meeting the core requirements of various equipment for reliable support and stable installation.

Product description

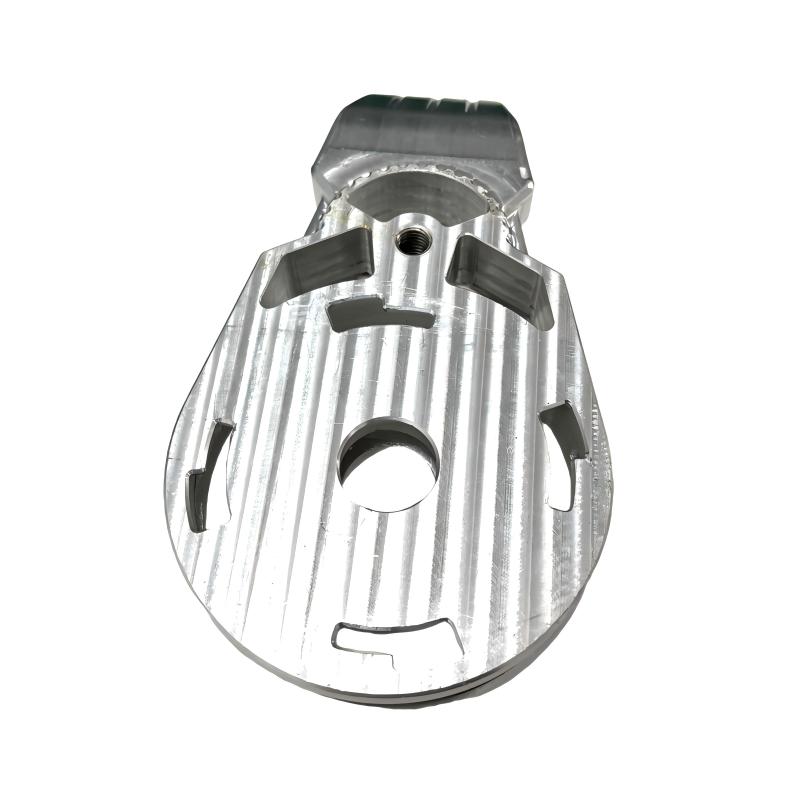

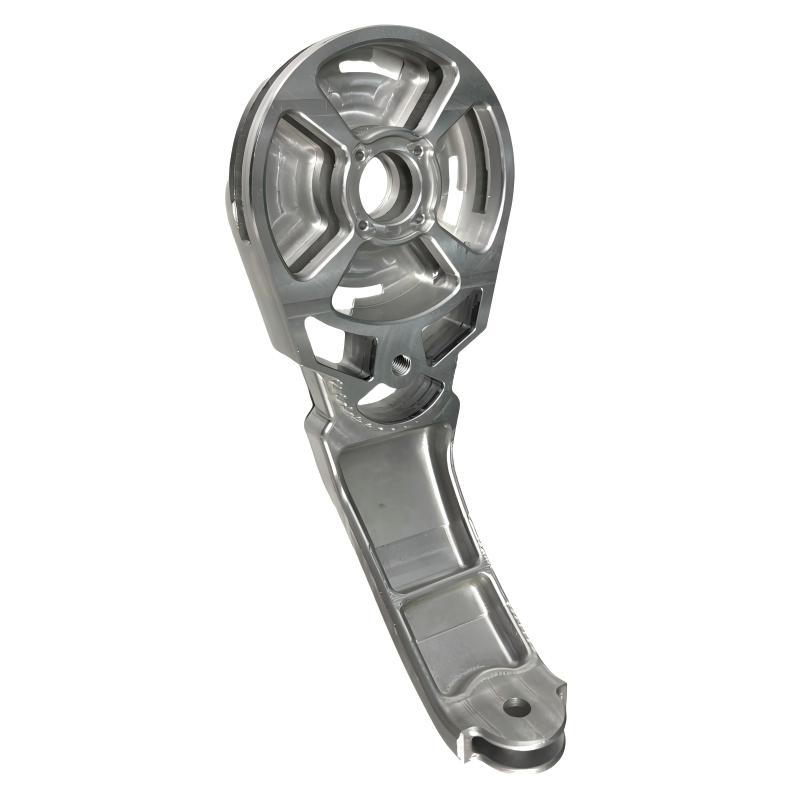

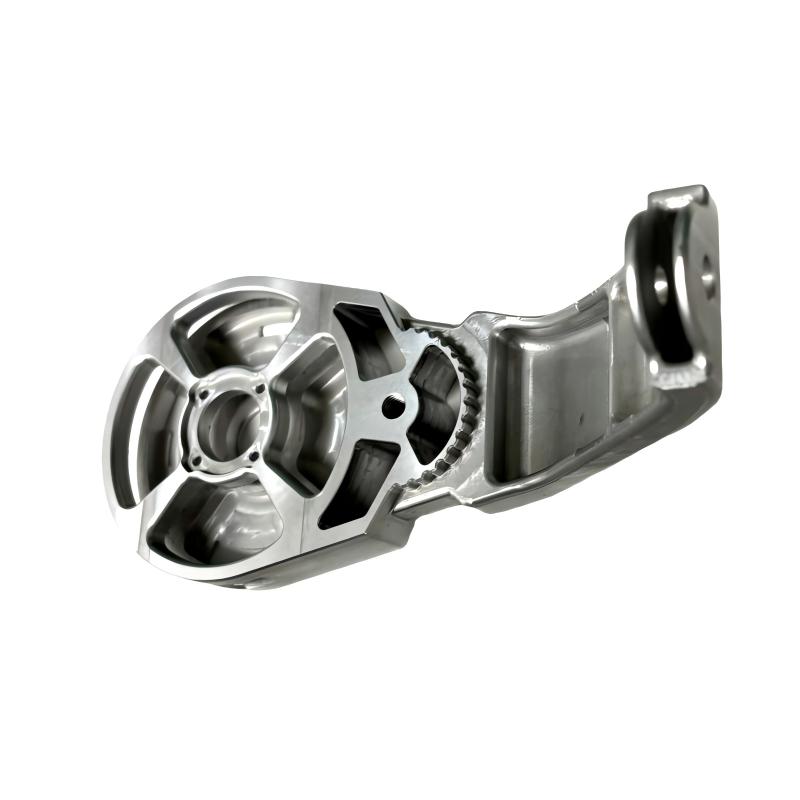

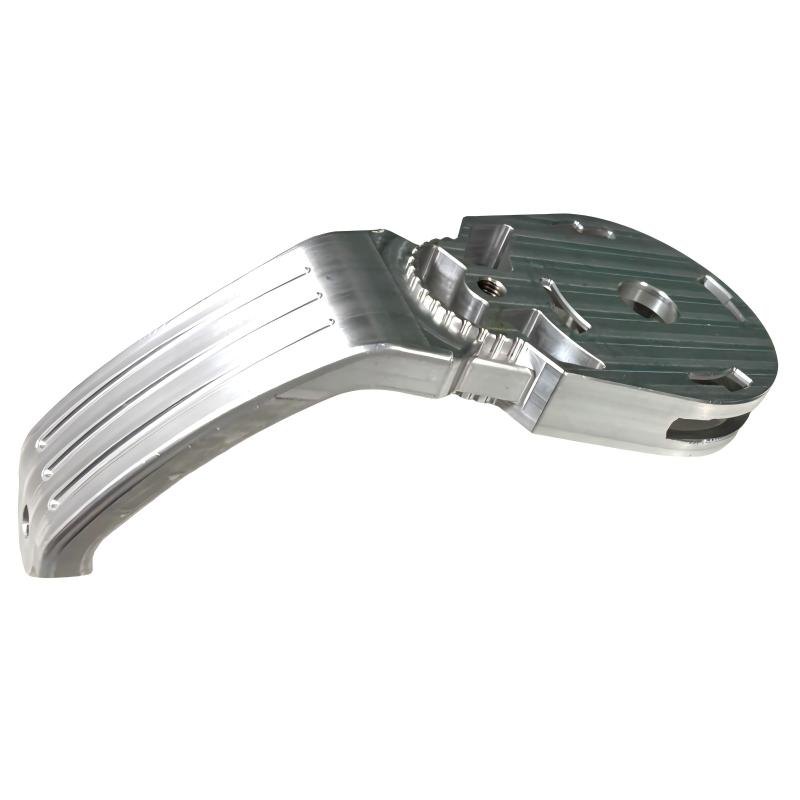

Precision CNC Machined Aluminum Mechanical Supports: A Superior Solution for Lightweight Load Bearing and Stable Support

In modern automated equipment, semiconductor manufacturing instruments, robotic systems, and precision testing devices, mechanical supports serve as fundamental structural components for load bearing and fixation, directly determining the rigidity and operational stability of the entire machine. We specialize in end-to-end precision machining services, dedicated to efficiently transforming high-quality aluminum alloy blanks into structurally optimized, dimensionally precise aluminum mechanical supports, fully meeting customers' customized needs for lightweight, high rigidity, and long-term stability.

I. Material Advantages: Lightweight, High Rigidity, Balanced Performance

We select high-quality aluminum alloy materials such as 6061-T6, 6063-T5, and 7075-T6 to professionally manufacture high-precision aluminum mechanical supports. 6061-T6 aluminum alloy possesses excellent comprehensive mechanical properties and superior machinability, making it suitable for most industrial automation and general mechanical support applications. 6063-T5 aluminum alloy boasts superior extrusion performance and a high surface finish, making it particularly suitable for bracket parts requiring anodizing and high aesthetic standards. 7075-T6, as an aerospace-grade aluminum alloy, has strength approaching that of ordinary steel while weighing only one-third of steel, making it an ideal choice for achieving both extreme lightweighting and high strength. Aluminum alloys naturally possess low density, high specific strength, good thermal and electrical conductivity, and excellent resistance to atmospheric corrosion.

II. Precision Machining: Micron-Level Accuracy, Ensuring Assembly and Positioning

Each aluminum mechanical bracket undergoes multi-axis CNC precision machining to ensure that the mounting reference surface, locating pin holes, threaded connection holes, and all mating surfaces meet stringent design requirements. The excellent machinability of aluminum alloys allows us to achieve higher machining accuracy and superior surface quality, meeting the demanding requirements of precision assembly for bracket parts.

By integrating a CAD/CAM system for processing simulation and optimization, combined with professional stress relief treatment, precision milling, drilling, reaming, and surface treatment processes, we have achieved dimensional stability and assembly accuracy of aluminum mechanical supports under long-term load and vibration conditions. Key accuracy indicators include: datum surface flatness ≤ 0.01mm/300mm, positioning hole position accuracy ≤ 0.02mm, hole perpendicularity to datum surface ≤ 0.01mm, and mounting surface roughness Ra ≤ 0.8μm.

III. Performance Advantages: A Perfect Combination of Lightweight Load Bearing and Stable Support

1. Superior Lightweight Characteristics: The density of aluminum mechanical supports is only 2.70g/cm³, approximately one-third that of steel. While meeting the same rigidity and strength requirements, the weight of aluminum supports is significantly reduced, thereby reducing the overall weight of the equipment and facilitating handling, installation, and maintenance.

2. Excellent Machining Accuracy and Assembly Performance: Aluminum alloys have superior machinability; combined with CNC precision machining, extremely high dimensional accuracy and a smooth surface can be obtained. Precision-machined mounting surfaces and positioning holes enable rapid and accurate assembly of functional components, reducing on-site adjustments. The smooth surface is not only aesthetically pleasing but also facilitates subsequent anodizing or spraying, enhancing corrosion resistance.

IV. Quality Assurance and Application Value

We employ automated production lines and a rigorous quality management system to ensure that every aluminum mechanical support meets stringent geometric precision and assembly requirements. From incoming material inspection and processing control to finished product inspection, the entire process is traceable.

Through the organic combination of advanced material applications, CNC precision machining technology, and rigorous quality management, we provide high-quality aluminum mechanical support solutions for the automation equipment, semiconductor equipment, and robotics industries. Whether it's a mobile robot requiring extreme lightweight design or a precision testing device with stringent stability requirements, our aluminum mechanical supports help customers enhance product competitiveness, shorten assembly cycles, and achieve long-term stable and reliable operation with superior performance.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
