Double-groove Circular Flanges

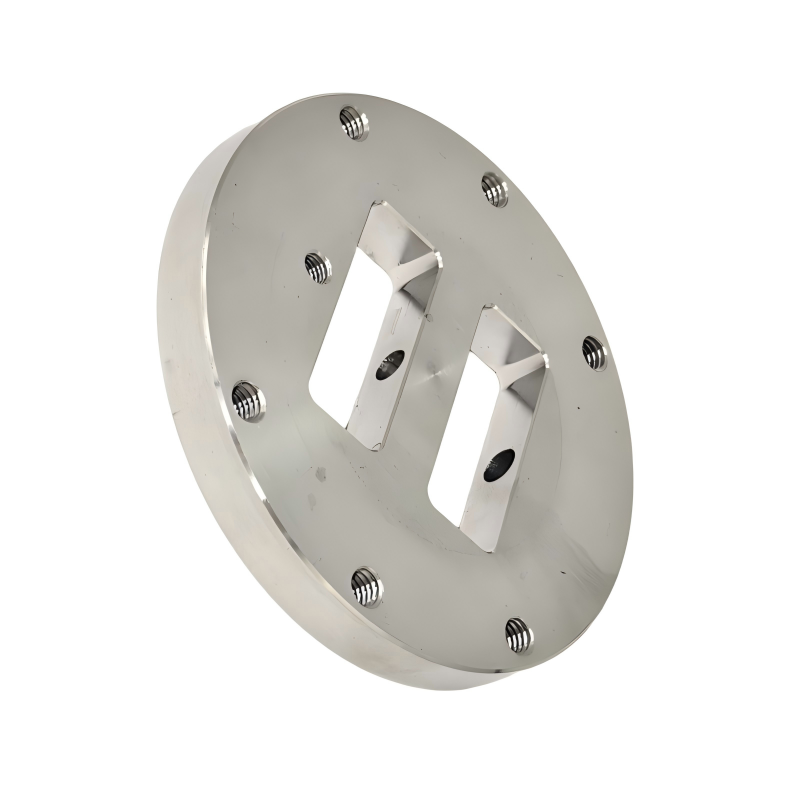

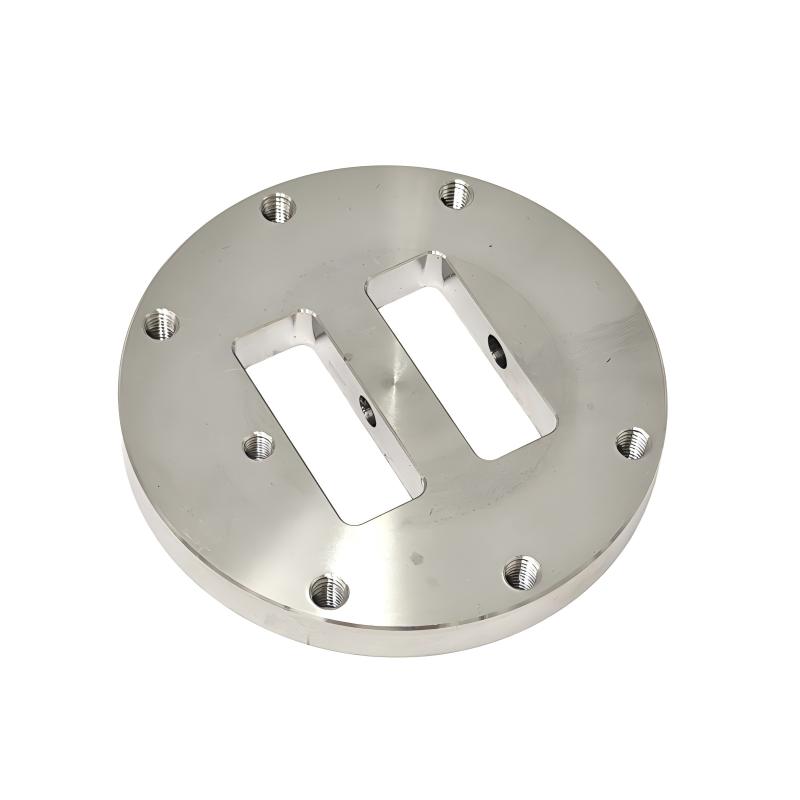

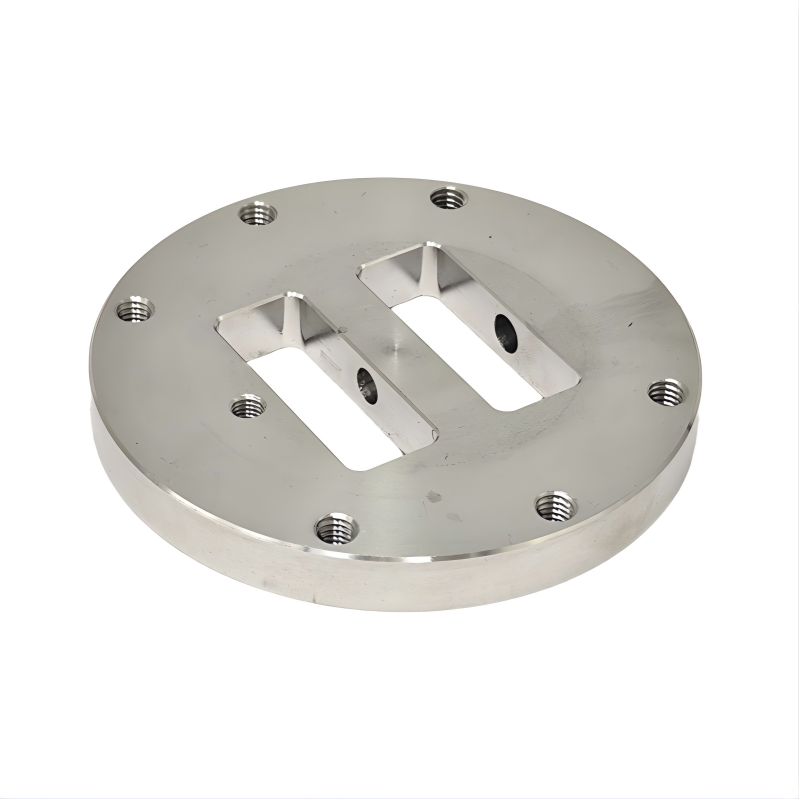

High-Precision 5-Axis CNC Machining of Double-Groove Circular Flanges

We specialize in 5-axis precision machining of double-groove circular flanges, equipped with high-end 5-axis CNC machine tools and professional testing systems. From complex groove design to precision sealing surface machining, we provide end-to-end manufacturing services, ensuring that each flange possesses precise assembly fit, excellent double sealing performance, and stable connection strength, meeting the stringent reliability and safety requirements of piping systems and high-pressure equipment.



Product description

Production Type Customized production and processing Material stainless steel
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000

High-Rigidity Stainless Steel Double-Slot Circular Flanges: A Professional Solution for Precision CNC Machining

In the field of precision mechanical transmission and automation equipment, flanges, as key basic components connecting shaft systems, fixing components, and transmitting loads, directly determine the assembly quality and operational stability of the entire machine due to their machining accuracy and structural reliability. Double-slot circular flanges, with their unique symmetrical groove structure and excellent connection performance, are widely used in reducer interfaces, robot joint connections, heavy-duty transmission devices, and various precision systems with high reliability requirements.

I. Superior Stainless Steel Ensures Superior Flange Performance

During operation, double-slot circular flanges bear complex combined loads, including axial tightening forces, radial shear forces, torsional moments, and alternating stresses during long-term operation, placing stringent requirements on the material's strength, rigidity, fatigue resistance, and corrosion resistance. Compared to aluminum alloys, stainless steel, with its superior comprehensive mechanical properties, demonstrates unique advantages in applications requiring heavy loads, high impacts, and high reliability.

II. Double-groove Structural Design and Precision Machining Ensure Connection Reliability

The core of the double-groove circular flange lies in its symmetrically distributed groove structure. This design not only achieves precise positioning and reliable locking with mating components but also provides uniform stress distribution during installation, effectively avoiding localized stress concentration. The geometric accuracy, width, depth consistency, and symmetry of the grooves directly determine the flange's connection rigidity and sealing reliability. We utilize high-rigidity CNC four-axis and five-axis machining centers, along with specialized fixtures and optimized cutting parameters, to perform one-time clamping and multi-face precision machining of the double-groove circular flange.

III. High-Rigidity Structural Design and Load-Bearing Capacity Optimization

In heavy-duty transmission systems, the structural rigidity of the flange directly affects the overall positioning accuracy and vibration resistance. The high elastic modulus of stainless steel gives the flange a natural rigidity advantage; however, a scientific structural design is equally indispensable. We employ finite element analysis and topology optimization techniques to systematically optimize the cross-sectional shape, stiffener layout, bolt hole distribution, and groove position of the double-groove circular flange.

IV. Surface Treatment and Enhanced Corrosion Resistance

Double-groove circular flanges operate long-term in industrial environments, often facing challenges such as humidity, oil contamination, corrosion, temperature fluctuations, and salt spray. While stainless steel possesses inherent corrosion resistance, scientific surface treatment can further enhance its environmental adaptability and service life. We offer a variety of surface treatment solutions to meet different operating conditions. Precision polishing achieves a mirror-like finish on the flange surface, facilitating cleaning and maintenance, effectively preventing contaminant accumulation, and is suitable for cleanroom environments. Sandblasting produces a uniform matte surface, improving the appearance and concealing minor scratches.

V. Diverse Applications and Customized Design Capabilities

Stainless steel double-groove circular flanges are widely used in heavy industrial robots, wind power transmission systems, marine machinery, semiconductor equipment, and aerospace ground equipment. Different application scenarios have varying requirements for flange dimensions, groove types, bolt hole distribution, stiffness characteristics, and corrosion resistance levels. We possess strong customized design capabilities, and can provide a one-stop service from material selection, structural optimization, strength verification to process implementation, based on the load parameters, installation interfaces, space constraints and environmental conditions provided by customers.
