Robotic Arm Supports

Automation Equipment Robotic Arm Support Accessories - Non-standard Parts Machining

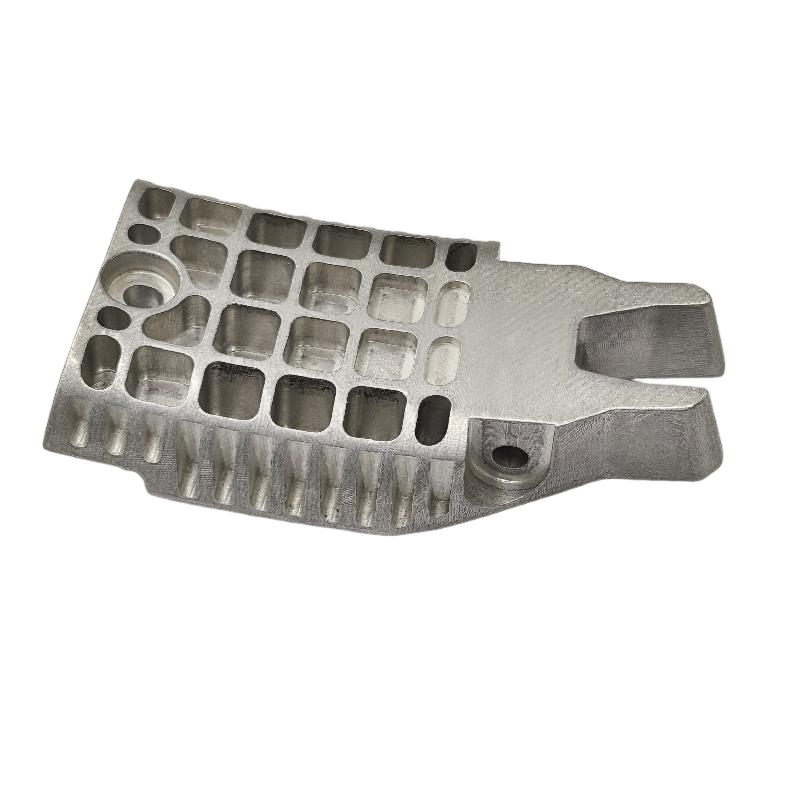

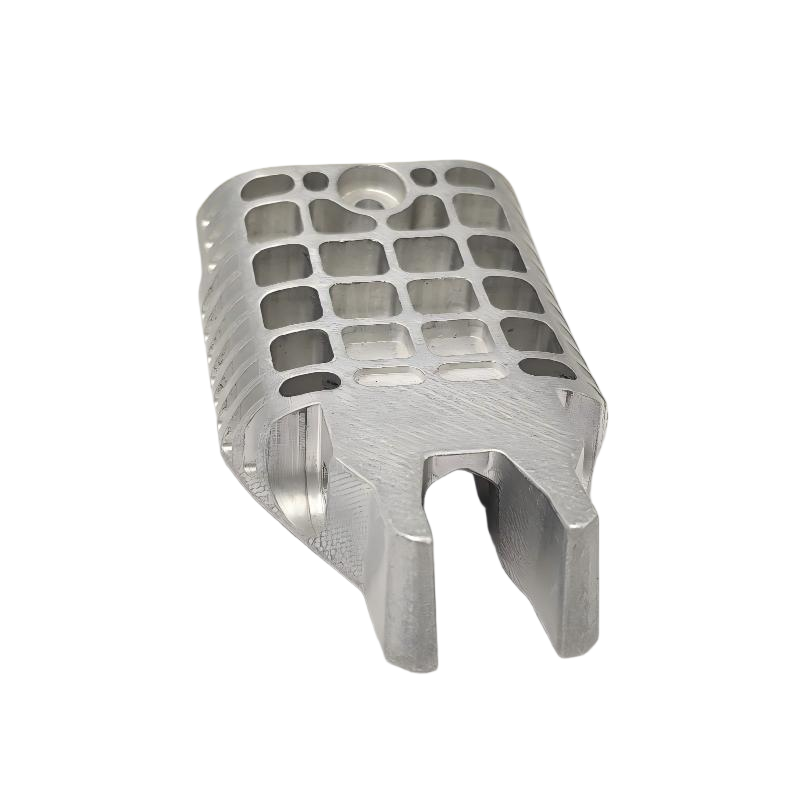

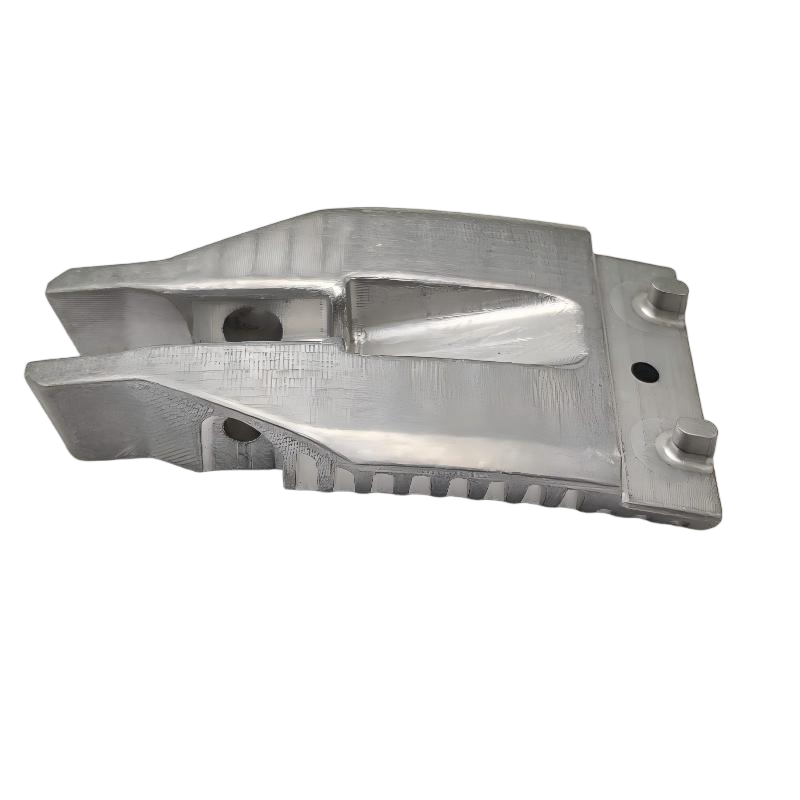

We specialize in five-axis precision machining of robotic arm supports, equipped with high-end five-axis CNC machine tools and professional testing systems. From complex structural design to mass production, we provide end-to-end manufacturing services, ensuring that each support possesses superior structural strength, precise assembly fit, and excellent fatigue resistance, meeting the stringent requirements of industrial robots for high stability and reliable operation.



Product description

Production Type Customized production and processing Material aluminum
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000

Robotic Arm Frame: The Solid Skeleton of Intelligent Equipment

In the fields of industrial robots, collaborative robotic arms, and automated equipment, the robotic arm frame, as a key supporting component connecting the base and motion mechanism, directly determines the robot's load capacity, motion accuracy, and dynamic response performance through its structural rigidity, positioning accuracy, and lightweight level. We focus on providing customers with high-quality robotic arm frame solutions through five-axis precision machining technology, perfectly integrating structural mechanics and precision manufacturing.

Five-Axis Linkage Machining: Integrated Precision Forming of Complex Spatial Structures

The core technology of the robotic arm frame lies in its multi-angle mounting surfaces, complex reinforcing rib structure, and precision bearing positioning hole system. Traditional machining methods require multiple clamping and multiple processes to complete the frame structure, making it difficult to guarantee the precise geometric relationship between the mounting surfaces. Our five-axis linkage CNC machining center, through multi-axis collaborative motion and intelligent programming systems, can complete the precision machining of all features of the frame in a single clamping.

Material Advantages and Lightweight Design

We select high-performance materials such as 6061-T6 and 7075-T6 aluminum alloys and carbon fiber composites. These materials have excellent strength-to-weight ratio, good fatigue resistance, and excellent dimensional stability. Through optimized heat treatment processes and precision machining, we achieve maximum weight reduction for the support frame while ensuring sufficient rigidity. Compared to traditional steel supports, our aluminum alloy robotic arm supports can achieve a 50%-70% weight reduction, significantly reducing robot inertia and improving acceleration and energy efficiency.

Innovative Processes and Precision Machining Technologies

To address the specific requirements of robotic arm supports, we have developed several innovative process technologies: 1) Precision bearing hole machining technology achieves H6-level precision, with roundness and cylindricity controlled within 0.003mm; 2) Multi-faceted one-time clamping machining, through five-axis linkage and precision fixtures, enables the complete clamping of the support frame's complex spatial features in a single operation; 3) Thin-walled reinforcing rib machining technology, through low-stress cutting and specialized tooling, effectively controls machining deformation in thin-walled areas.



With five-axis precision machining as our core capability, we integrate robot dynamics, materials science, and advanced manufacturing technologies to provide the global robotics industry with robust, lightweight, precise, and dynamically superior robotic arm support solutions. Choosing us means choosing to equip your smart devices with a reliable and robust framework, ensuring every movement is powerful and precise.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

  1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
  2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
  3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
