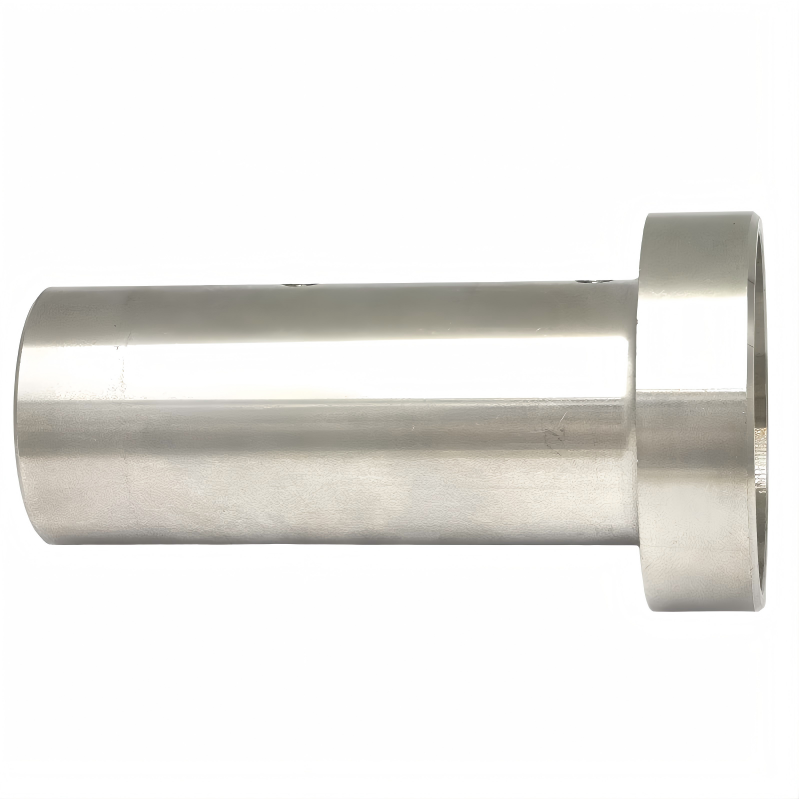

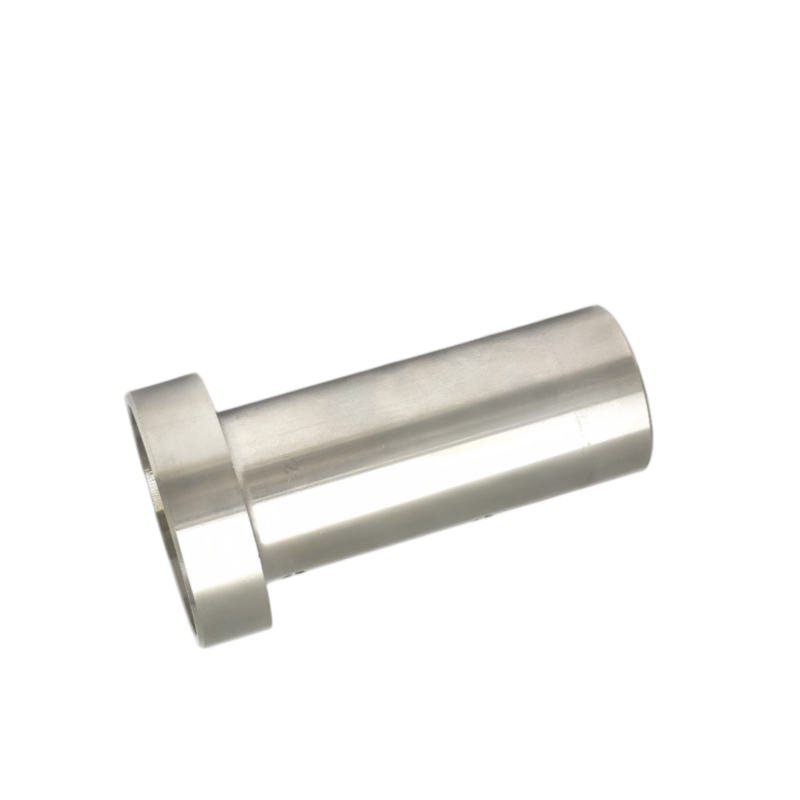

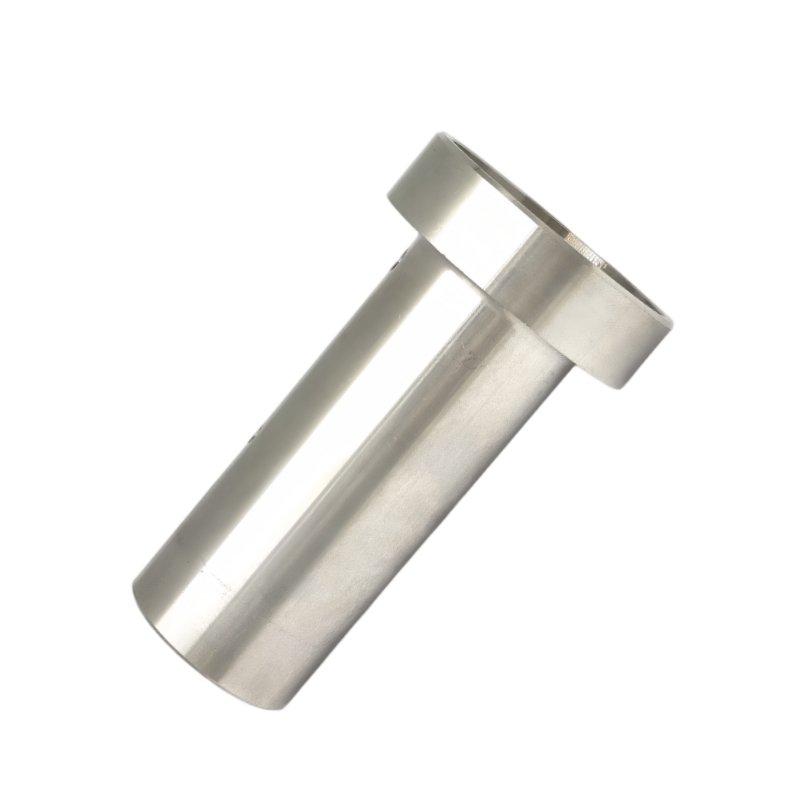

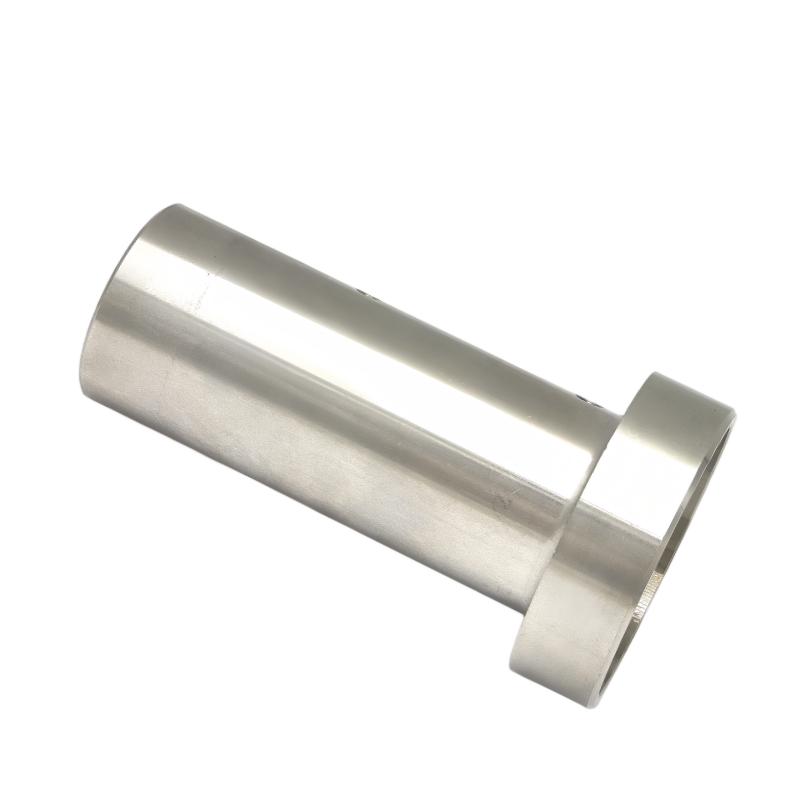

Flange Bushings

Precision and reliable flange bushings are manufactured using CNC machining

We specialize in five-axis precision machining of flange bushings, equipped with high-performance five-axis CNC machine tools and professional testing systems. From complex internal bore forming to precision flange surface machining, we provide end-to-end manufacturing services, ensuring that each bushing possesses precise fit tolerances, excellent wear resistance, and stable connection performance, meeting the core requirements of various transmission systems for efficient support and reliable protection.



Product description

Production Type Customized production and processing Material aluminum
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000



Flange Bushings: Precision Positioning Support Bases and Stable



Foundations for Rotating Components

Flange bushings, as key components in mechanical equipment that support rotating shafts, transmit loads, and achieve precision positioning, play an irreplaceable role in motor drives, precision machine tools, and aerospace components. The precision and rigidity of flange bushings directly determine the smoothness of operation, positioning accuracy, and service life of rotating components. With the development of equipment towards higher speeds and higher precision, traditional turning and welding processes are no longer sufficient to meet the multiple requirements of thin-walled structures, precision fits, and multi-interface integration.

Technological Breakthrough of Five-Axis CNC Machining

Five-axis CNC technology has opened up a completely new path for the precision manufacturing of flange bushings. Through the coordinated control of five motion axes, precision cutting tools can complete the full process integration of the flange end face, bearing hole system, and positioning datum in a single clamping. For bushing designs with irregular flanges, multi-stage bearing holes, and reinforcing rib structures, the five-axis system ensures the geometric accuracy and positional relationship of each mating surface through dynamic tool attitude adjustment.

Intelligent Forming for Precision Fit

Facing the varying strength characteristics and machining challenges of different materials such as bearing steel, alloy steel, and cast iron, five-axis CNC employs a differentiated machining strategy. The intelligent CAM system automatically generates optimized machining paths based on the bushing's load spectrum and rotational accuracy requirements. By precisely controlling cutting parameters, ideal fit accuracy is achieved while ensuring structural strength.

Dual Improvement in Efficiency and Stability

The five-axis machining center highly integrates the traditional manufacturing process requiring multiple steps and clamping operations, increasing production efficiency by over 50%. A single clamping operation ensures the perpendicularity accuracy of the flange end face and bearing bore, with a perpendicularity error not exceeding 0.005 mm, and the coaxiality of each bearing bore is controlled within 0.01 mm.



The precision manufacturing of flange bushings is not only a manifestation of support technology but also a core guarantee for rotating machinery engineering. Five-axis CNC technology deeply integrates rotor dynamics, tribology, and precision machining, fulfilling the promise of precise positioning in every rotational support, continuously driving the development of high-speed rotating equipment towards higher precision and more stable operation.
