Flange Seats

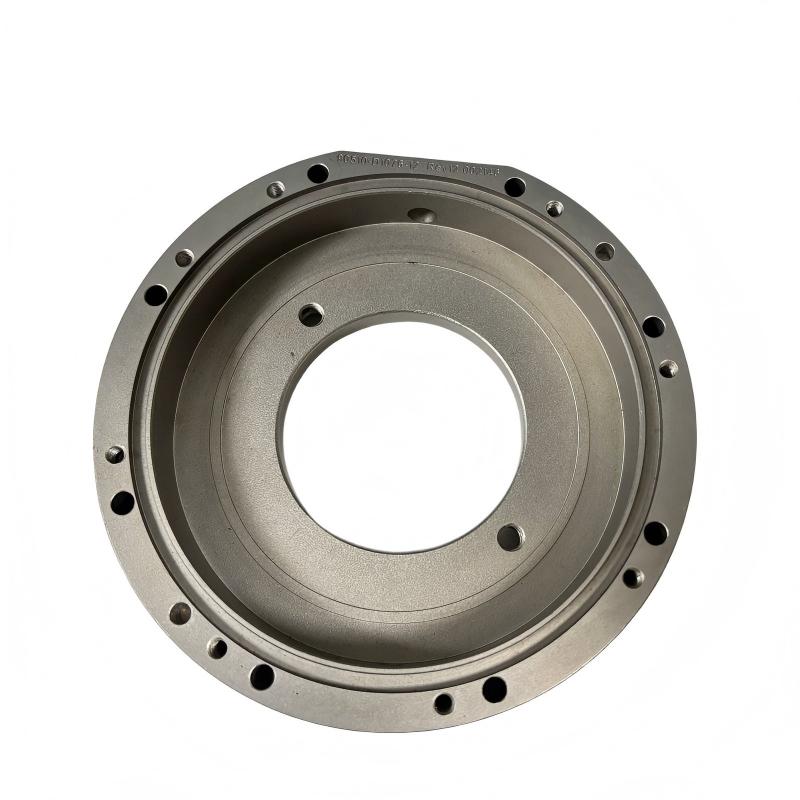

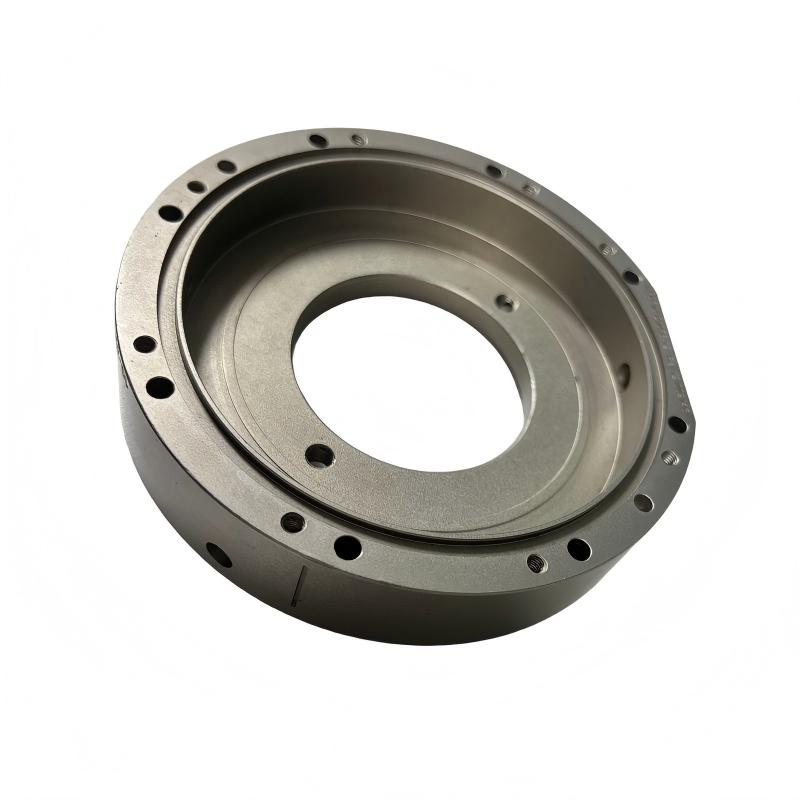

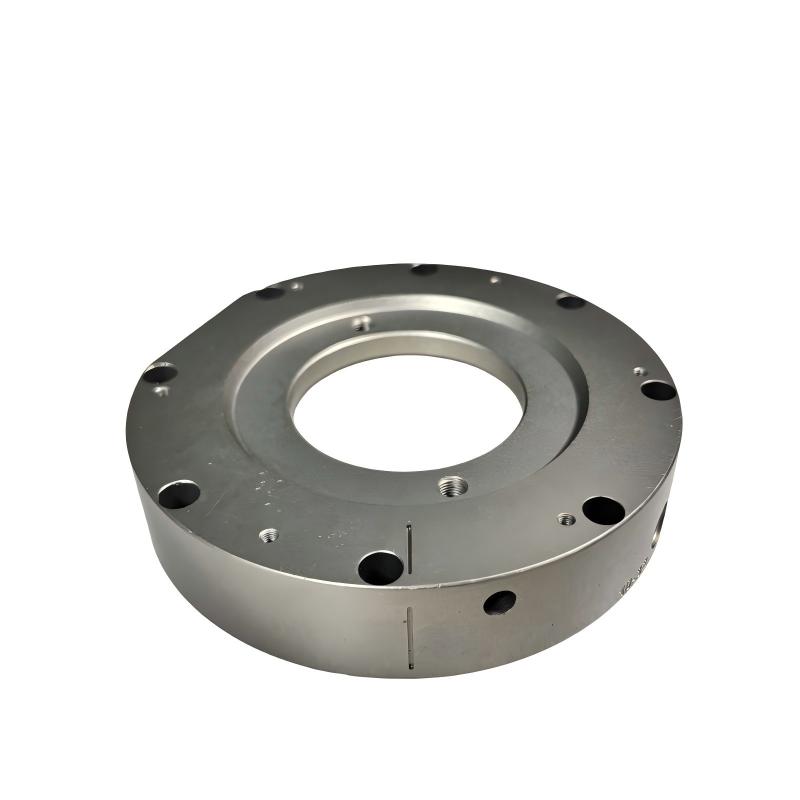

Custom-made Precision CNC-machined Flange Seats for 5-Axis Parts
Ganyuan Factory has focused on flange seat manufacturing for over twenty years. Relying on high-precision CNC equipment and professional testing technology, we strictly control flange flatness, mounting hole accuracy, and fit tolerances to ensure stable support and reliable sealing in pipe connections and equipment installation.
Product description
| Production Type | Customized production and processing | Material | stainless steel |
| Workmanship | CNC lathe machining, five axis CNC machining, polishing | Applied to | Mechanical components, etc |
| Size |
D180*90
|
Proofing time |
7-15 |
| Precision |
±0.02mm |
Do you want to make a sample | Yes |
|
OEM/ODM |
OEM ODM CNC machining services |
Place of Origin | Dongguan, China |
| type | Manufacturers/factories and trading companies | Main products | Numerical control part; Processing parts; stainless steel parts |
| Management system certification |
ISO 9001:2015 |
Production capacity |
100000 |
High-Precision Milling and Turning Solutions for Professional Flange Seats
As a critical connection and support component in mechanical equipment, the flange seat's precise mounting datum, complex multi-faceted features, and reliable load-bearing capacity directly determine the assembly accuracy and operational stability of the equipment. We specialize in providing advanced milling and turning machining services for various flange seats. By integrating high-precision turning and complex milling into a single-clamp integrated manufacturing process, we provide customers with flange seat component solutions that combine superior geometric accuracy, excellent load-bearing performance, and high consistency.
Technological Breakthroughs and Process Innovations in Flange Seat Manufacturing
Traditional flange seat machining typically requires turning the flange plate on a lathe before transferring it to a milling or drilling machine to machine side holes, locating grooves, and other features. Multiple clamping operations are not only inefficient but also make it difficult to guarantee the perpendicularity of the flange end face to the mounting hole system, the positional accuracy between the holes, and the coaxiality of the flange's inner and outer circles. Our milling and turning technology completes all precision machining processes in a single clamping operation, integrating flange datum turning, multi-faceted milling, precision hole system machining, and sealing structure forming into a continuous process.
Integrated Manufacturing Capabilities for Flange Seats
We leverage a high-precision multi-axis milling and turning center and a high-rigidity fixture system to achieve efficient and high-precision integrated molding of various flange seats:
Precision Reference Turning: High-precision turning of the flange's outer diameter, inner hole, end face, and locating stop establishes a stable reference for all subsequent feature machining. Surface roughness can reach below Ra0.4μm, and end face flatness is controlled within 0.01mm.
Multi-face Composite Feature Milling: Through precise indexing of the worktable and multi-axis linkage, precision milling of mounting planes, locating grooves, reinforcing ribs, weight-reducing cavities, and irregular contours on all sides of the flange seat is completed in one operation, ensuring the precise spatial positional relationship of each feature.
High-Precision Hole and Thread Machining: Precise drilling, reaming, and tapping of all mounting through holes, threaded holes, locating pin holes, oil passage holes, and sealing threaded holes on the flange. Hole position accuracy can reach ±0.015mm, and thread pitch diameter accuracy meets the 6H standard.
Our comprehensive quality assurance system for flange seats
We have established a rigorous quality control system that matches the requirements of precision fasteners. In addition to online inspection, we are equipped with professional equipment such as high-precision coordinate measuring machines, roughness testers, and roundness testers. We not only conduct 100% inspection of all mating dimensions and geometric tolerances of the flange seats, but also rigorously verify the flatness of the end face, the positional accuracy of the mounting holes, the dimensional accuracy of the sealing groove, and the surface integrity. We ensure that every flange seat delivered is not only a dimensionally accurate connecting element, but also a high-quality core component that is reliable in load-bearing capacity, provides a tight seal, and meets the requirements of high-end equipment.
