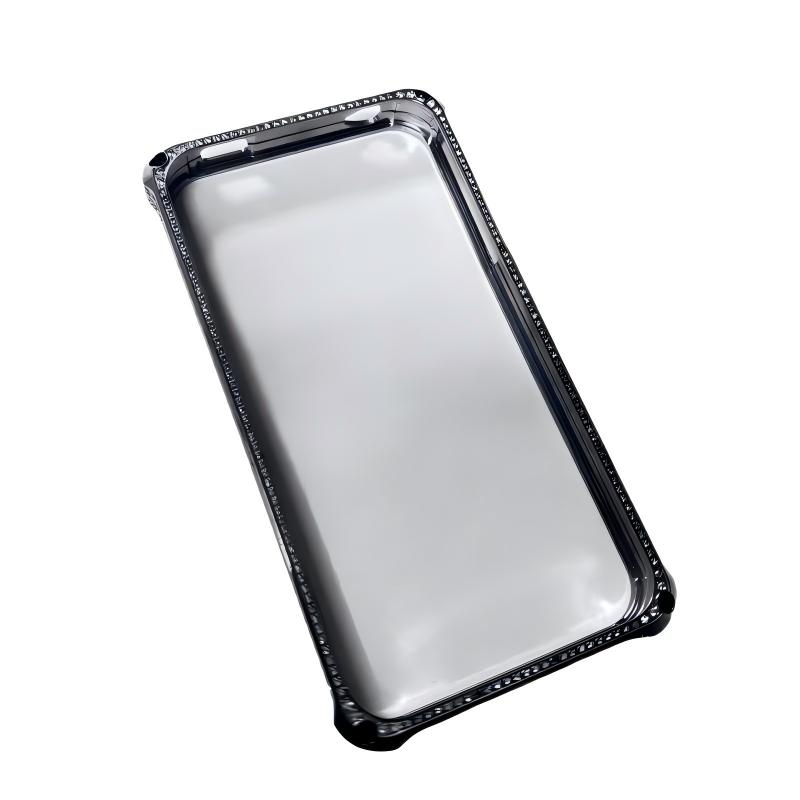

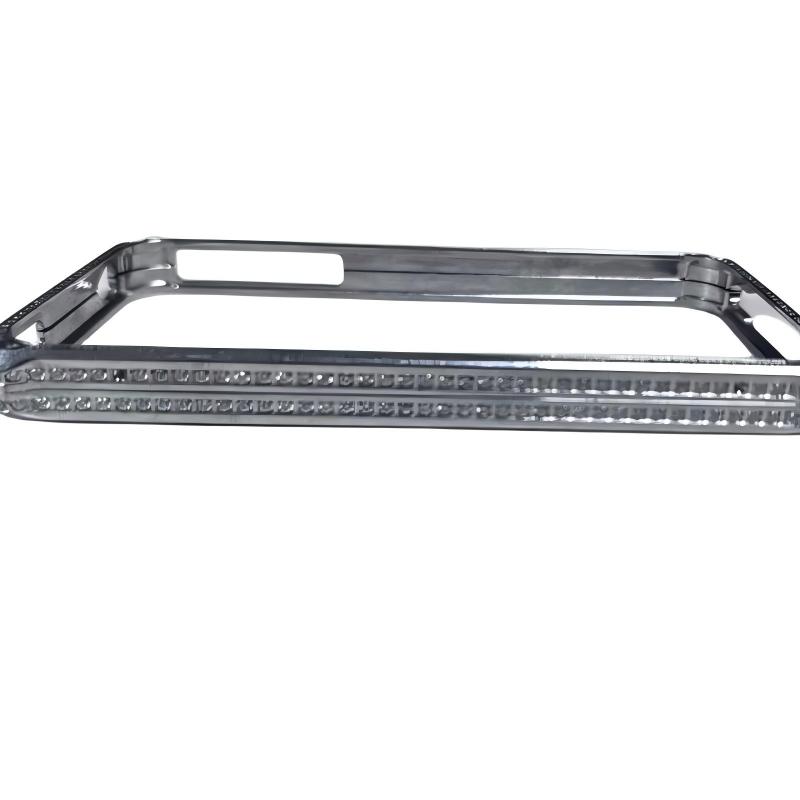

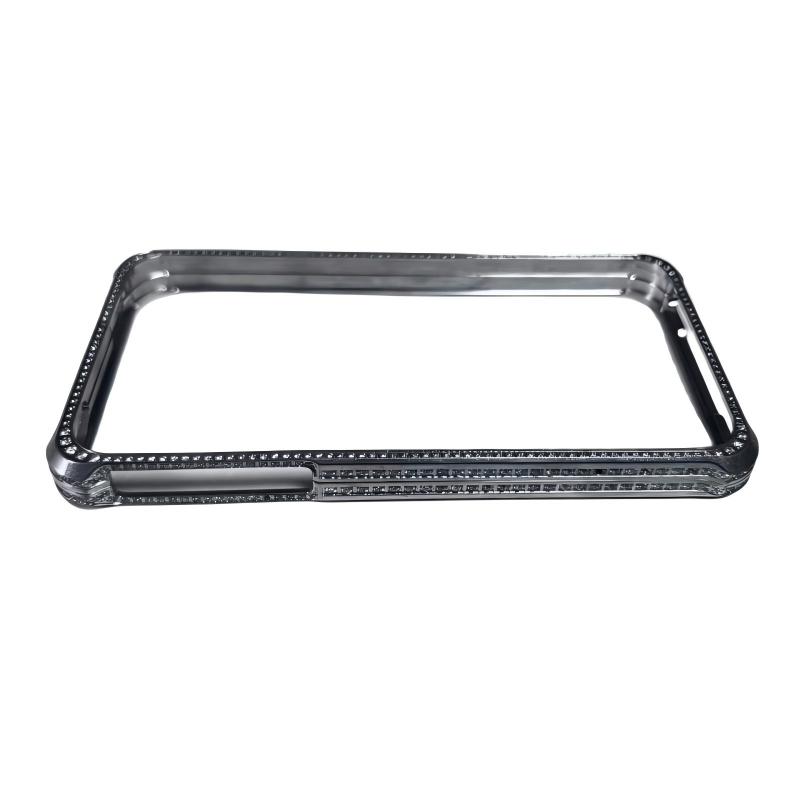

High-Quality Custom Aluminum Phone Frames – 5-Axis CNC Precision Machining

We specialize in the 5-axis precision machining of aluminum phone frames, utilizing high-end 5-axis CNC machine tools and professional testing systems. From complex structural forming to fine surface treatment, we provide end-to-end manufacturing services, ensuring that each frame combines lightweight advantages, superior structural strength, and a comfortable grip, providing precise protection and modern aesthetic design for smartphones.

Product description

Precision Manufacturing Technology and Core Advantages of Aluminum Phone Frames

As the structural framework and aesthetic carrier of smartphones, the manufacturing precision of aluminum phone frames directly determines the overall structural strength, heat dissipation performance, and grip feel. In key areas such as thin and light smart devices, aluminum frames, with their excellent specific strength, good thermal conductivity, and exquisite surface treatment, have become an indispensable core component of mobile smart terminals. As mobile phones continue to evolve towards full-screen, ultra-thin, and integrated designs, five-axis CNC machining technology, with its precision forming capability for complex three-dimensional curved surfaces, deep adaptation to aluminum alloy materials, and extreme surface quality control, has become the core technology for manufacturing high-performance aluminum phone frames.

Core Technical Characteristics of CNC Machining for Aluminum Phone Frames

1. High-Precision Forming Technology for Complex Three-Dimensional Curved Surfaces
Modern phone frames adopt ergonomic composite curved surface designs, achieving precise integration of complex functions such as antenna segmentation slots, button positioning slots, speaker arrays, and Type-C interfaces within a limited space. The five-axis CNC machining center, through specialized surface machining algorithms and micro-toolpath planning, precisely transforms complex 3D surfaces in the digital model into solid frames, controlling contour accuracy errors within ±0.03mm. Smooth G2 transitions are achieved at surface junctions, ensuring comfortable grip and aesthetic appeal.

2. Rigidity Control and Deformation Prevention Technology for Ultra-Thin Bezels

To achieve the ultimate screen-to-body ratio, mobile phone bezels are often designed with an ultra-thin structure of 0.8-1.5mm thickness. CNC machining employs dynamic stiffness compensation technology, micro-cutting strategies, and symmetrical machining processes, combined with a vacuum adsorption fixture system, to stably machine precision bezels with uniform wall thickness and no warping deformation.

3. Aluminum Alloy Material Precision Machining and Surface Treatment Adaptation System

Targeting the characteristics of different aluminum alloy grades such as 6063-T5, 6061-T6, and 7-series aluminum, the CNC system automatically matches the optimal cutting parameters through a mobile phone industry-specific process database. Employing PCD diamond tools and micro-lubrication technology, it completes the machining of the outer frame contour, internal reinforcing ribs, and precision hole system in a single clamping operation, achieving a surface quality of Ra0.4 or lower. This provides an ideal base for subsequent sandblasting, anodizing, and high-gloss edge finishing.

Core Advantages of Precision Manufacturing of Aluminum Mobile Phone Frames

1. Superior Structural Strength and Heat Dissipation Performance
The precise geometry and integrated structure ensured by CNC machining give the mobile phone frame excellent resistance to deformation when subjected to drop impacts. Actual test data shows that the bending strength of the precision-machined aluminum frame is 20% higher than that of the stainless steel frame. Simultaneously, the high thermal conductivity of aluminum alloy allows for rapid heat transfer from the chip to the frame surface, improving heat dissipation efficiency by over 30%, ensuring long-term stable operation of high-performance processors.

2. Exceptional Surface Texture and Grip Experience
The uniform wall thickness and smooth surface achieved through precision machining, combined with subsequent 150-mesh sandblasting and 15μm hard anodizing, form a dense oxide layer with a hardness exceeding HV400, improving wear resistance by 5 times. The high-gloss edge-cutting process is completed in a single pass on a five-axis machining center, with chamfer accuracy controlled within ±0.02mm, resulting in a crystal-clear luster that significantly enhances the product's premium feel.

The CNC precision manufacturing of the aluminum phone frame, through the accurate forming of complex three-dimensional curved surfaces, effective control of ultra-thin bezel deformation, and deep adaptation of aluminum alloy surface treatment processes, successfully transforms advanced industrial design concepts into high-performance smart terminal components.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
