Automotive Axles

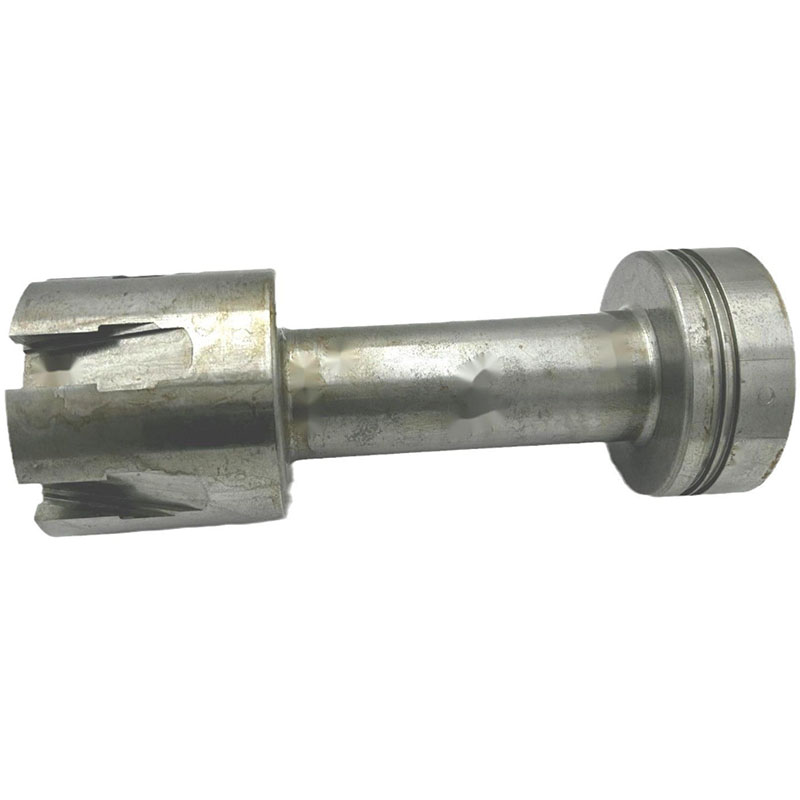

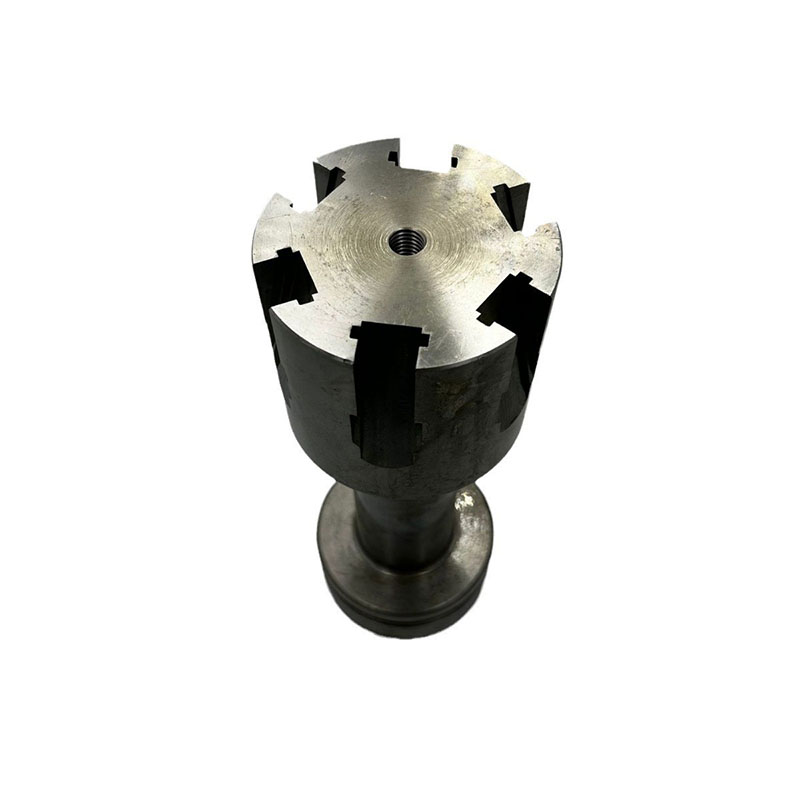

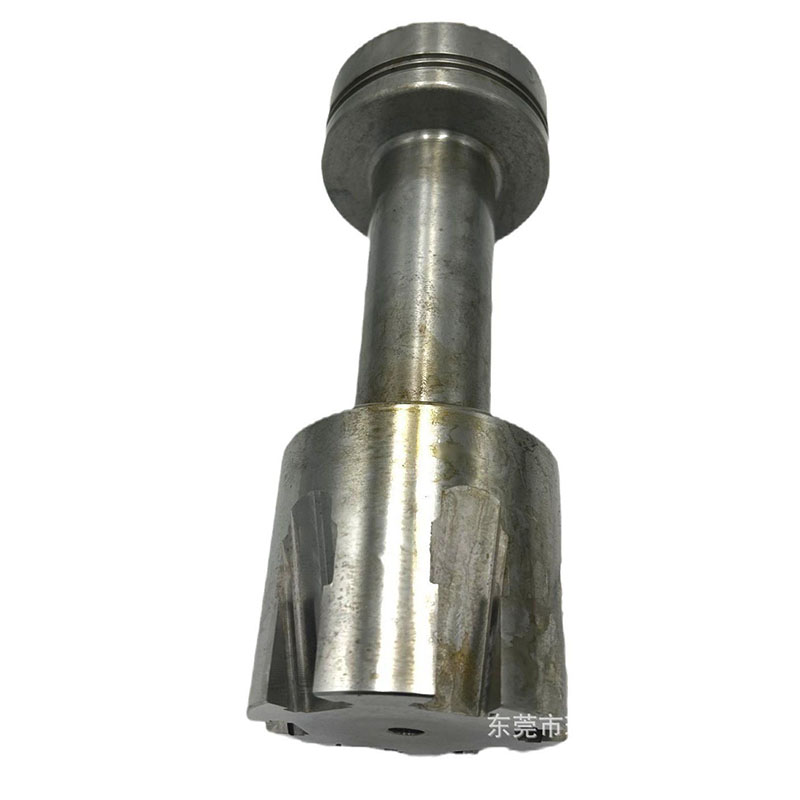

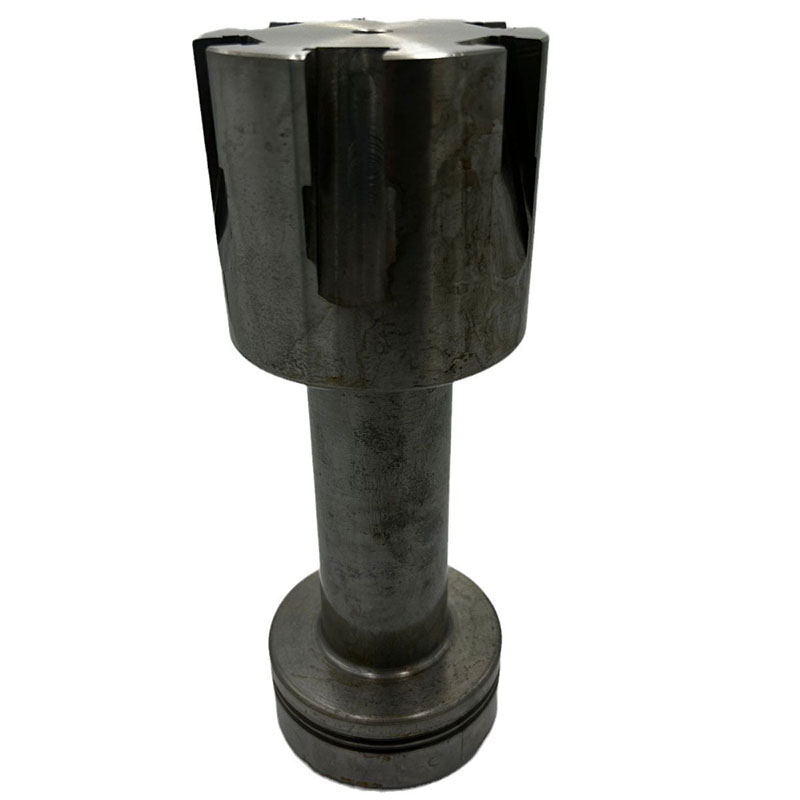

High-Precision 5-Axis CNC Machining for Custom Automotive Axle Metal Parts
We specialize in 5-axis precision machining of automotive axles, equipped with high-performance 5-axis CNC machine tools and professional testing systems. From complex geometries to mass production, we provide end-to-end manufacturing services, ensuring that each axle possesses superior transmission accuracy, excellent fatigue strength, and durable corrosion resistance, meeting the stringent requirements of the automotive industry for safety, durability, and efficient drive.
Product description
| Production Type | Customized production and processing | Material | stainless steel |
| Workmanship | CNC lathe machining, five axis CNC machining, polishing | Applied to | Mechanical components, etc |
| Size |
D180*90
|
Proofing time |
7-15 |
| Precision |
±0.02mm |
Do you want to make a sample | Yes |
|
OEM/ODM |
OEM ODM CNC machining services |
Place of Origin | Dongguan, China |
| type | Manufacturers/factories and trading companies | Main products | Numerical control part; Processing parts; stainless steel parts |
| Management system certification |
ISO 9001:2015 |
Production capacity |
100000 |
Automotive Shafts: The Core Power Transmitters Driving Vehicles
In the intricate and complex mechanical system of a car, shafts serve as crucial links between the power source and actuators, undertaking the core mission of transmitting torque, supporting rotating components, and ensuring driving stability. We focus on providing the automotive industry with a full range of high-quality shaft solutions, from engine shafts and drive shafts to chassis steering shafts, through five-axis precision machining technology, elevating the precision and reliability of power transmission to a new level.
Five-Axis Linkage Machining: Integrated Precision Manufacturing of Complex Shaft Structures
Modern automobiles have increasingly stringent technical requirements for shaft components, often requiring the integration of complex functional features such as splines, gears, bearing seats, oil seal mating surfaces, and various connection interfaces onto a single shaft. Our five-axis linkage CNC machining center, through multi-axis coordinated motion control, can complete the entire process from stock to finished shaft in a single clamping. This integral forming process not only ensures micron-level dimensional accuracy and coaxiality between various features but also avoids the cumulative errors that may occur with multiple clampings, ensuring that automotive shafts maintain excellent dynamic balance performance and long-term reliability under high-speed rotation and heavy-load conditions.
Comprehensive Quality Control System
We have established a complete quality assurance system that meets automotive industry standards, covering the entire process from material selection, forging/heat treatment, precision machining to finished product inspection. Based on the stress characteristics and operating requirements of different shaft parts, we carefully select high-quality alloy structural steels such as 20CrMnTi, 40Cr, and 42CrMo, ensuring material quality through rigorous spectral analysis and mechanical property testing. During production, we are equipped with high-precision coordinate measuring machines, roundness testers, profilometers, and dynamic balancing testing equipment to comprehensively inspect the dimensional tolerances, form and position errors, surface quality, internal defects, and balance levels of automotive shafts, ensuring that every part meets the stringent standards of the automotive industry.
Innovative Processes and Surface Strengthening
To address the service requirements of automotive shafts under complex operating conditions, we have developed several innovative processes. Through precision grinding and ultra-precision machining technologies, we can achieve a mirror-like finish on bearing seats with a Ra thickness of less than 0.2μm, significantly reducing friction and wear. Controlled atmosphere heat treatment and deep carburizing processes create a high-hardness, wear-resistant layer on the surface of shaft parts while maintaining good toughness in the core. High-intensity shot peening and roll forming techniques introduce residual compressive stress in critical areas, significantly improving fatigue life.
With five-axis precision machining as our core capability, we integrate automotive engineering, materials science, and advanced manufacturing technologies to provide the global automotive industry with precise load-bearing capacity, reliable operation, and long service life automotive axle solutions. Choosing us means choosing to equip every vehicle with a reliable "power backbone," ensuring safe, smooth, and efficient driving every time.
Company Profile
We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.
5-axis CNC workshop
Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.
Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.
2D inspection equipment
Product Packaging
Packaging Details
- Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
- Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
- According to the requirement of customer.
FAQ
Q1: Where can I get product & price information?
A1: Send us an inquiry e-mail, we will contact you once we received your mail.
Q2: How long will I get the sample?
A2: Depends on your specific items, within 3-7 days generally.
Q3: What kinds of information do you need for a quote?
A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.
Q4: What are the payment terms?
A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.
Q5: How to deliver the goods?
A5: We deliver the products by courier company.
Q6: Are you a trading company or factory?
A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.
Q7: What shall we do if we don't have drawings?
A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.
Q8: Can we get some samples before mass production?
A8: Absolutely yes.
Q9: Will my drawings be safe after sending them to you?
A9: Yes, we will keep them well and won't release them to the third party without your permission.
Q10: Is it possible to know the operation status of my products without visiting your company?
A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.
Q11: If you make poor quality goods, will you refund?
A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
