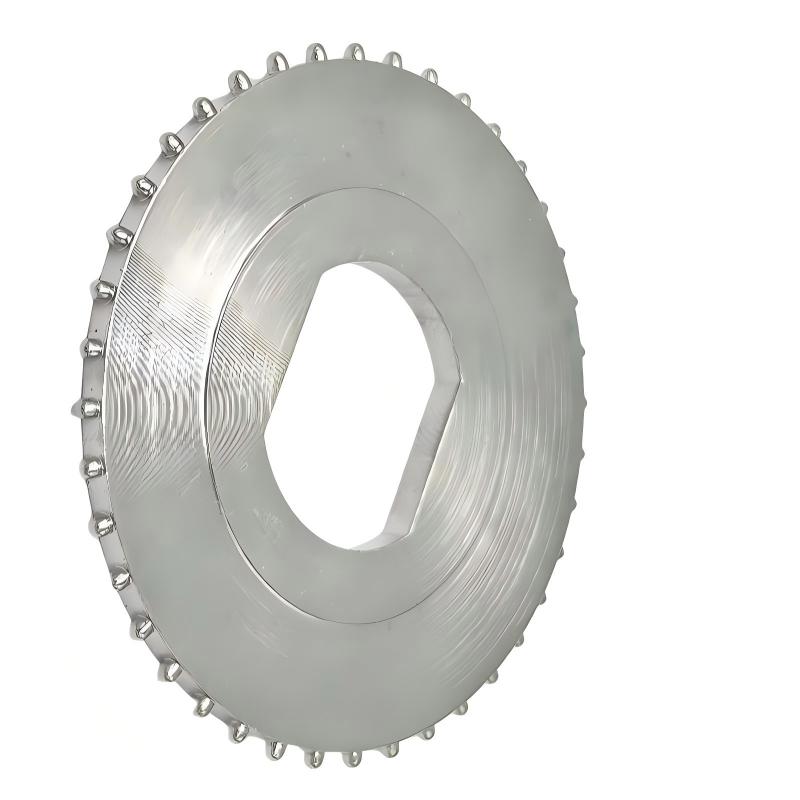

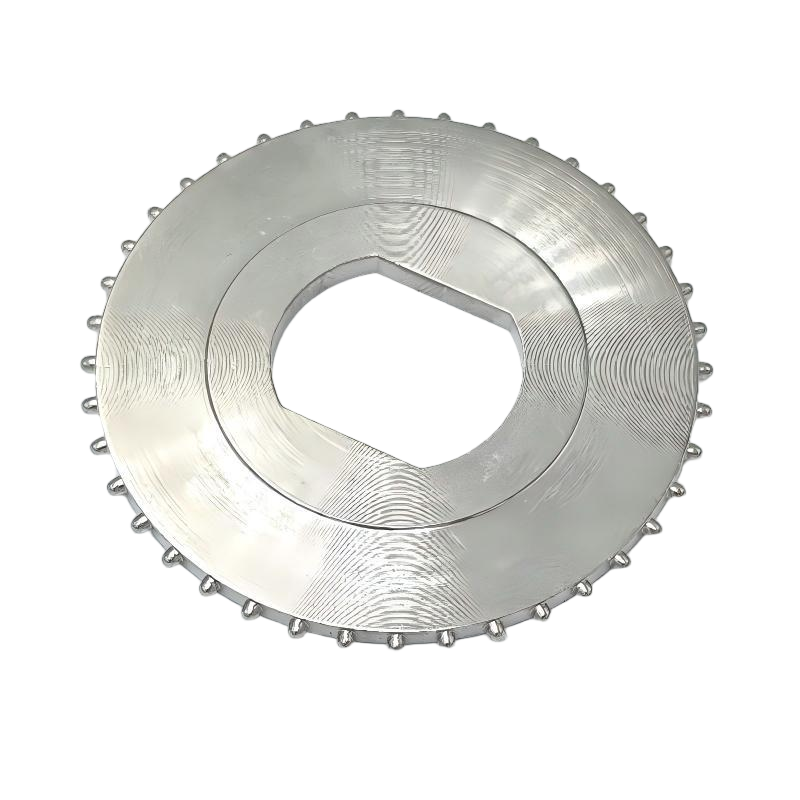

Precision Custom-Made 316 Stainless Steel CNC Machined Thin-Wall Gear Parts

Ganyuan Factory has focused on manufacturing stainless steel thin-wall gears for over twenty years. Relying on high-precision CNC equipment and professional testing technology, we strictly control tooth profile accuracy, thin-wall flatness, and surface wear resistance to ensure smooth transmission and long service life within a compact space.

Product description

Stainless Steel Thin-Wall Gears: Core Components of Micro-Precision Transmission

In the fields of modern precision instruments, micro-mechanical systems, and intelligent devices, stainless steel thin-wall gears, with their unique thin-walled structure and high-precision tooth profile, have become key components for power transmission and motion control within minute spaces.

Five-Axis Machining: The Precision Forming Challenge of Ultra-Thin Structures

The manufacturing difficulty of thin-wall gears lies in ensuring tooth profile accuracy and structural rigidity while maintaining extremely small thickness. Traditional machining methods easily lead to thin-wall deformation and tooth profile distortion. Our five-axis CNC machining center, equipped with a micro-tooling system and specialized vacuum adsorption fixtures, can complete the precision tooth profile forming process in a single operation on stainless steel sheets with a thickness of only 0.3mm to 2mm through optimized cutting parameters and multi-axis coordinated motion. This process ensures that the geometric accuracy of the tooth profile, the consistency of the tooth pitch, and the coaxiality of the inner and outer circles all reach micron-level standards, making it particularly suitable for applications such as precision instruments where space and weight are critical.

Comprehensive Precision Assurance System

We have established a complete technical service system, from tooth profile design optimization, material selection, process parameter verification to comprehensive performance testing. To meet the load requirements of different application scenarios, we carefully select high-quality stainless steel materials such as 304, 316, and 17-4PH. Through vacuum heat treatment and stress relief processes, we ensure the dimensional stability of the thin-plate gears during processing and use. During production, we are equipped with a high-precision gear measurement center, a 3D optical microscope, a surface roughness tester, and a miniature torque testing platform to comprehensively inspect the gear's tooth profile error, cumulative pitch error, thin-wall deformation, and actual transmission performance, ensuring that each batch of products meets ISO 5 or more stringent precision standards.

Innovative Process and Material Advantages

For the special requirements of thin-plate gears, we have developed several proprietary technologies: 1) Low-stress cutting process: By optimizing toolpaths and cutting parameters, we minimize stress deformation during processing; 2) Micro-tooth forming technology: Enables precision machining of ultra-small module gears with a module of 0.2; 3) Thin-wall support and vacuum adsorption system: Ensures the rigidity of ultra-thin parts during processing.

Customized Development and Continuous Innovation

We not only provide standard-specification thin-plate gear products, but also excel at fully customized design and manufacturing based on customers' specific needs. Whether it's special tooth profiles, irregular structures, or integration solutions with other micro-components, our engineering team provides end-to-end technical support from conceptual design to mass production.

With five-axis precision machining as our core capability, we integrate micromechanical design, materials science, and precision measurement technology to provide customers with precise, ultra-thin, reliable, and high-performance stainless steel sheet gear solutions. Choosing us means choosing a reliable precision core for your micro-drive system, enabling precise power transmission within tiny spaces.
