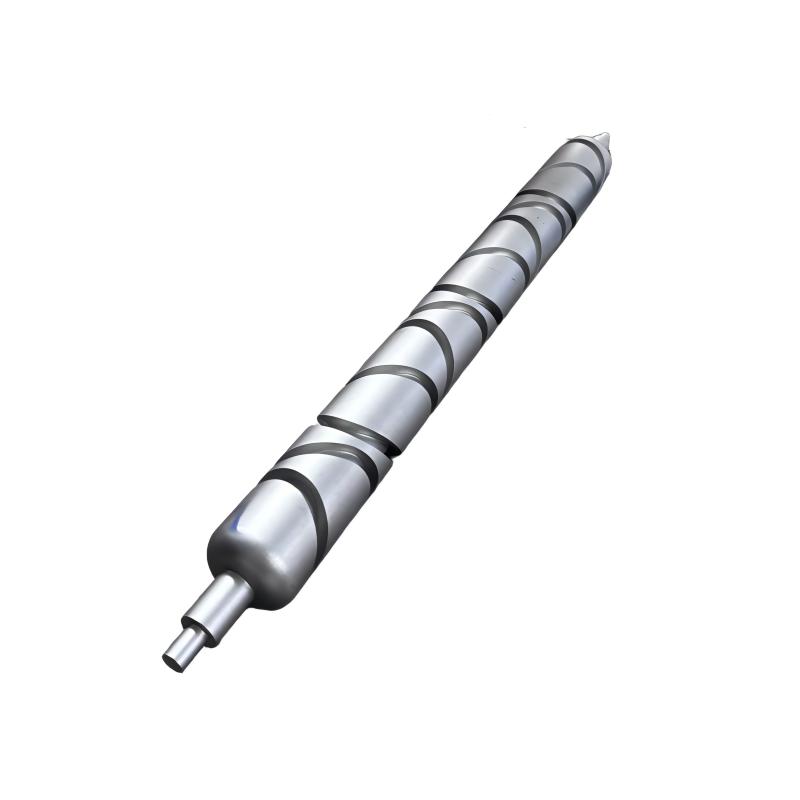

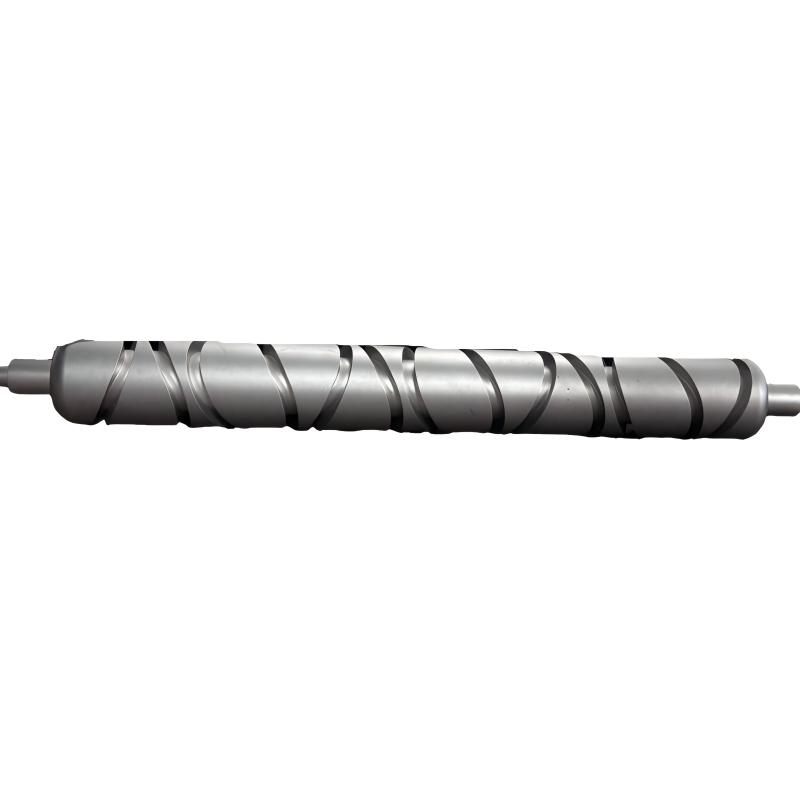

High-Quality CNC-Machinered Aluminum Shafts: Precision Mechanical Parts Manufacturing

Ganyuan Factory has focused on manufacturing aluminum shaft parts for over twenty years. Relying on high-precision CNC lathes and professional testing equipment, we strictly control the straightness, concentricity, and surface finish of the shafts to ensure that our aluminum shafts possess excellent lightweight characteristics, wear resistance, and transmission stability.

Product description

Precision Manufacturing Technology and Core Advantages of Aluminum Shafts

As a core component of mechanical transmission systems, the manufacturing precision of aluminum shafts directly determines the smoothness of rotating parts operation, power transmission efficiency, and equipment lifespan. In key areas such as precision instruments, robot joints, high-speed spindles, and lightweight transmission systems, aluminum shafts, with their excellent specific strength, good vibration damping characteristics, and outstanding corrosion resistance, have become indispensable core components in high-end equipment manufacturing. As transmission systems continue to evolve towards higher speeds, higher precision, and lighter weights, five-axis CNC machining technology, with its precision forming capability for complex shaft structures, deep adaptation to the properties of aluminum alloy materials, and extreme dimensional consistency control, has become the core technology for manufacturing high-performance aluminum shafts.

Core Technical Characteristics of Aluminum Shaft CNC Machining

1. High-Precision Forming Technology for Complex Shaft Structures
Modern precision aluminum shafts employ a stepped shaft design based on dynamic simulation, achieving multi-functional integration of bearing positioning, torque transmission, and axial limiting within a limited space. 5-axis CNC machining centers utilize a composite milling and turning process to completely machine complex shaft structures from digital models in a single setup. This ensures critical journal dimensional tolerances are controlled within IT5 precision level, with coaxiality errors less than 0.003mm, guaranteeing high-speed, stable operation of rotating components.

2. Rigidity Control Technology for Slender Ratio Structures
To meet lightweight design requirements, aluminum shafts often employ a slender ratio structure of 10-15 times their diameter. CNC machining, through dynamic support systems, real-time cutting force monitoring, and vibration suppression technology, can stably machine precision long shafts with straightness less than 0.01mm/m and no bending deformation. This reduces weight while maintaining sufficient bending stiffness, increasing critical speed by over 25%.

3. Process Adaptation System for Aluminum Alloy Shafts

For different grades of aluminum alloys such as 7075 and 6061, the CNC system automatically matches the optimal cutting parameters through a material-specific process database. Employing PCD tools and micro-lubrication technology, it achieves precision forming of the outer diameter, end face, keyway, and threads in a single machining operation, obtaining a surface quality of Ra 0.2 or less, providing an ideal substrate for subsequent hard anodizing.

Core Advantages of Precision Manufacturing of Aluminum Shafts

1. Superior Rotational Accuracy and Transmission Efficiency
CNC machining ensures precise geometry and excellent surface integrity, significantly reducing vibration and runout of the shaft system at high speeds. Actual measurement data shows that CNC-machined precision aluminum shafts exhibit a 45% reduction in vibration amplitude at 30,000 rpm compared to traditional processes, and an 8-12% increase in transmission efficiency, making them particularly suitable for precision spindles and high-speed transmission systems.

2. Ultimate Quality Consistency and System Reliability
Digital manufacturing ensures that the dimensional dispersion of each batch of aluminum shafts is controlled within 0.3%, and the dynamic balance quality reaches G1 level standards. This manufacturing consistency is crucial for multi-axis linkage systems and precision transmission chains, effectively avoiding system resonance and precision loss caused by shaft system differences, and extending bearing life by more than 40%.

The CNC precision manufacturing of aluminum shafts, through the precise forming of complex shaft structures, effective control of slender-to-long-span stiffness, and in-depth optimization of aluminum alloy material processes, successfully transforms advanced transmission design concepts into high-precision rotating components. This technology not only reflects the modern precision engineering's dual pursuit of rotational accuracy and lightweight design, but also provides key technical support for the high-speed, precision, and long-life development of high-end equipment, continuously propelling transmission technology towards higher performance and greater reliability.
