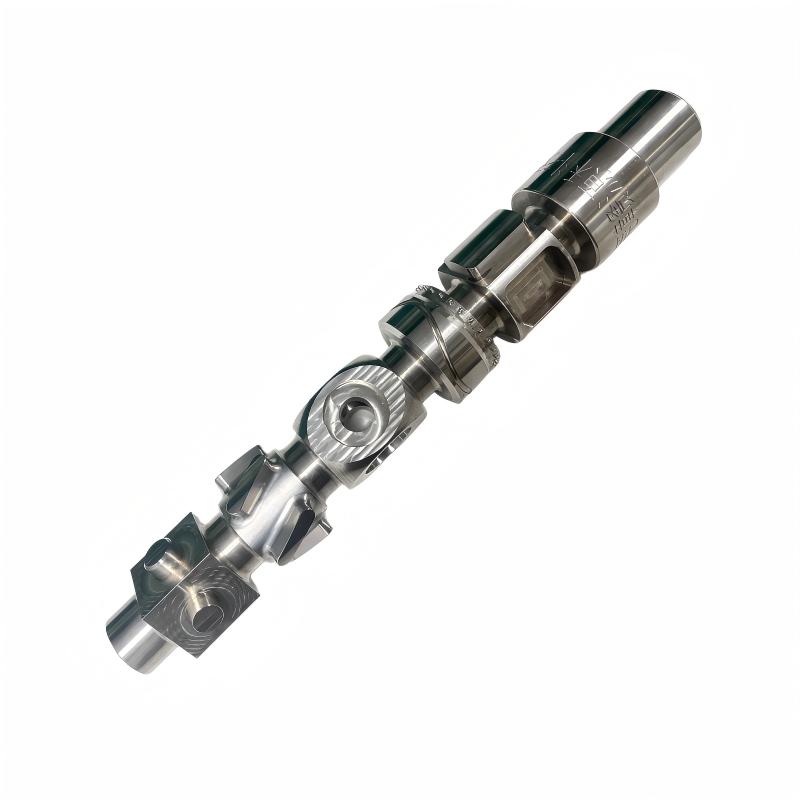

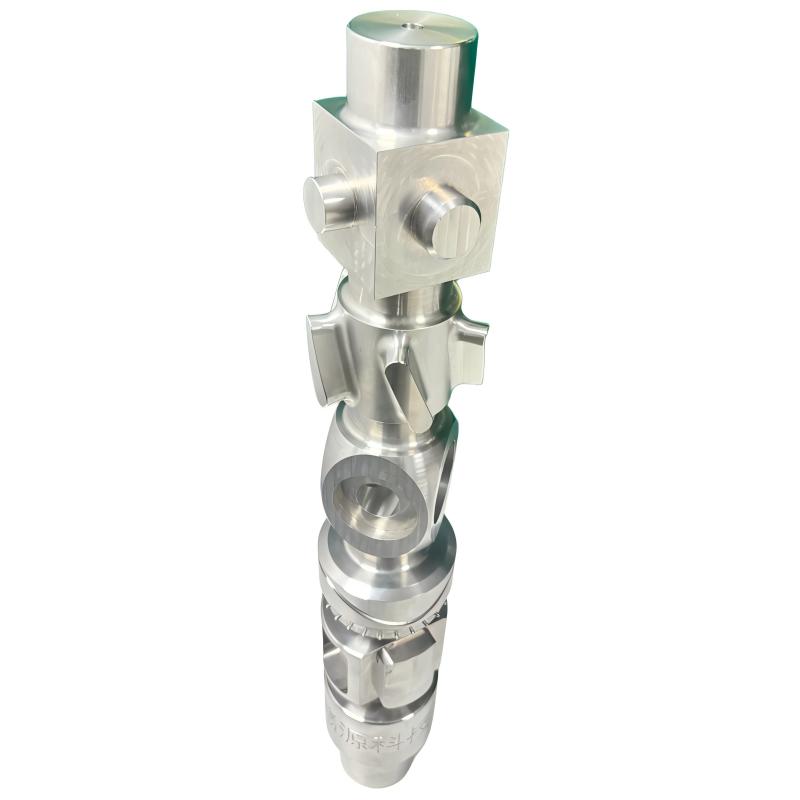

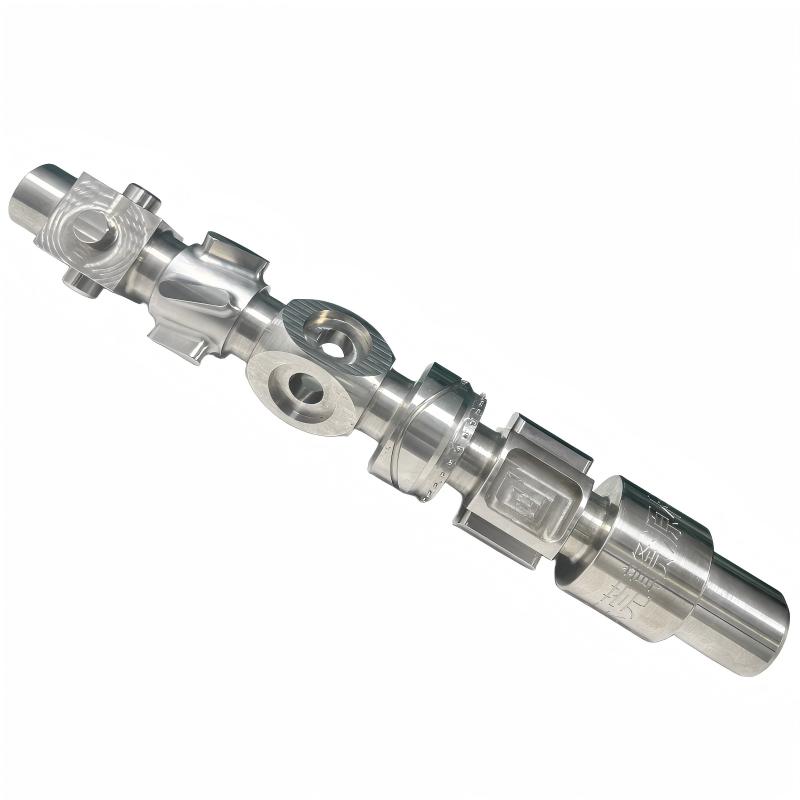

High-precision shaft parts are custom-made using 5-axis CNC machining

We specialize in 5-axis precision machining of shaft parts, equipped with high-performance 5-axis CNC machine tools and professional testing systems. From complex geometric forming to mass production, we provide end-to-end manufacturing services, ensuring that each shaft part possesses excellent transmission precision, superior wear resistance, and long-term stable operation, meeting the core requirements of various precision equipment for efficient drive and reliable performance.

Product description

Shafts: The Engineering Core of Precision Rotation

The Foundation of Mechanical Transmission Systems

Shafts, as core transmission components in various mechanical equipment, play a crucial role in automotive manufacturing, aerospace, precision instruments, and industrial equipment. From the precision spindles of micro-motors to the drive shafts of heavy machinery, from the precision shaft centers of high-speed spindles to the multi-stage shaft systems of complex gearboxes, the performance of shafts directly determines the efficiency, precision, and reliability of the entire transmission system. As modern machinery develops towards higher speeds and higher precision, unprecedentedly stringent requirements are placed on the geometric accuracy, surface quality, and material properties of shafts.

Five-Axis CNC Machining Breakthrough

Five-axis CNC technology has brought a revolutionary breakthrough to the precision manufacturing of shafts. Through the coordinated control of five motion axes, the equipment can complete multi-process composite machining of complex shaft systems in a single setup. For shafts with multi-step structures, eccentric features, complex keyways, and precision threads, the five-axis system dynamically adjusts the tool posture to ensure optimal cutting conditions for each machining surface.

Intelligent Forming of Complex Structures

Faced with the machining characteristics of different materials, five-axis CNC employs differentiated machining strategies. The intelligent CAM system automatically generates optimized toolpaths based on the 3D model and stress analysis data of the shaft components. For shaft components requiring heat treatment followed by finishing, the system creates ideal conditions for subsequent grinding processes through precise allowance control.

A Double Leap in Precision and Efficiency

The five-axis machining center highly integrates complex processes that traditionally require multiple machines and multiple clamping operations, increasing production efficiency by over 50%. Single clamping ensures coaxiality accuracy between shaft segments, with radial runout controlled within 0.005mm and axial runout not exceeding 0.01mm. This integrated manufacturing model is particularly suitable for the production of high-end shaft components in small batches, significantly shortening delivery cycles while ensuring consistent precision.

Precise Control of Technical Details

During machining, the five-axis CNC system monitors key dimensions in real time through online measurement. The system automatically adjusts machining strategies according to the performance requirements of different functional areas: ultra-precision machining is used on bearing mating surfaces to ensure smooth operation; the gear mounting section strictly controls tooth profile position accuracy; and the surface hardness distribution of the spline area is optimized. The intelligent temperature management system precisely controls the thermal impact of machining, avoiding the influence of thermal deformation on the final accuracy.

The precision manufacturing of shaft components is not only a concentrated manifestation of machining technology, but also an important practice in modern transmission engineering. Five-axis CNC technology perfectly integrates materials science, structural mechanics, and advanced manufacturing processes, embodying the ultimate pursuit of precision, efficiency, and reliability in the rotating shaft, continuously driving modern manufacturing towards higher levels of development.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
