Industrial Precision CNC 5-Axis Machining of Stainless Steel Cam Mechanical Components

Ganyuan specializes in the 5-axis precision machining of stainless steel cams, equipped with high-end 5-axis CNC machine tools and professional testing systems. From complex surface design to mass production, we provide end-to-end production services, ensuring that each cam possesses precise motion control, excellent wear resistance, and long-term corrosion resistance, meeting the core requirements of automated equipment for precise transmission and reliable operation.

Product description

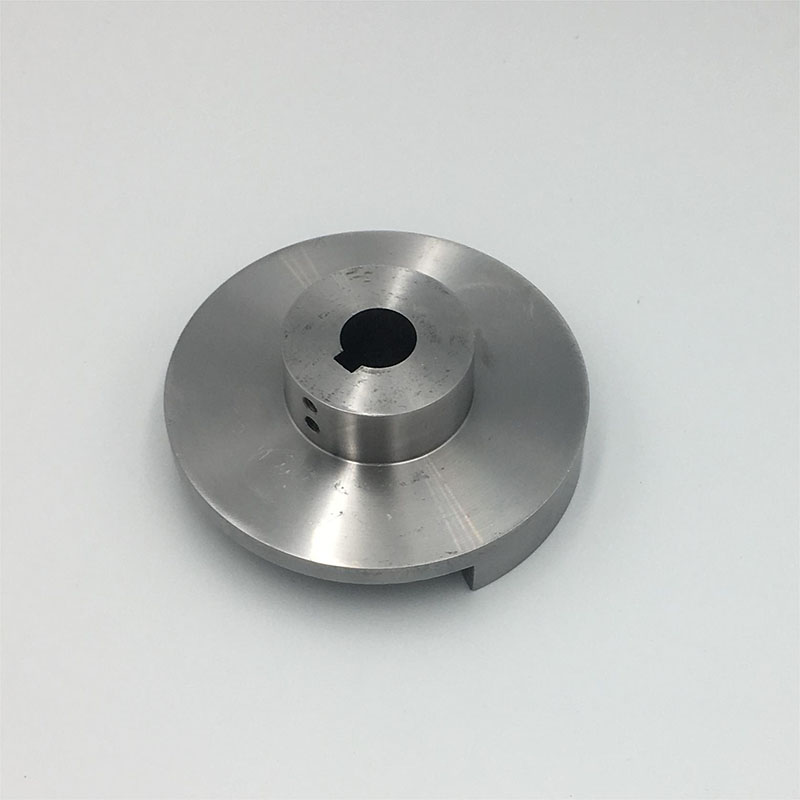

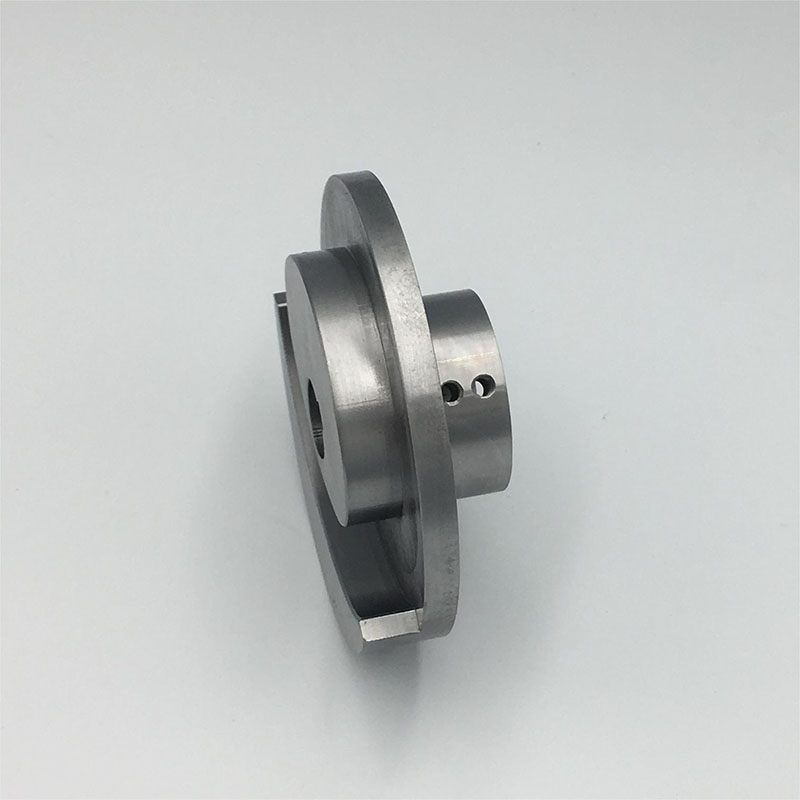

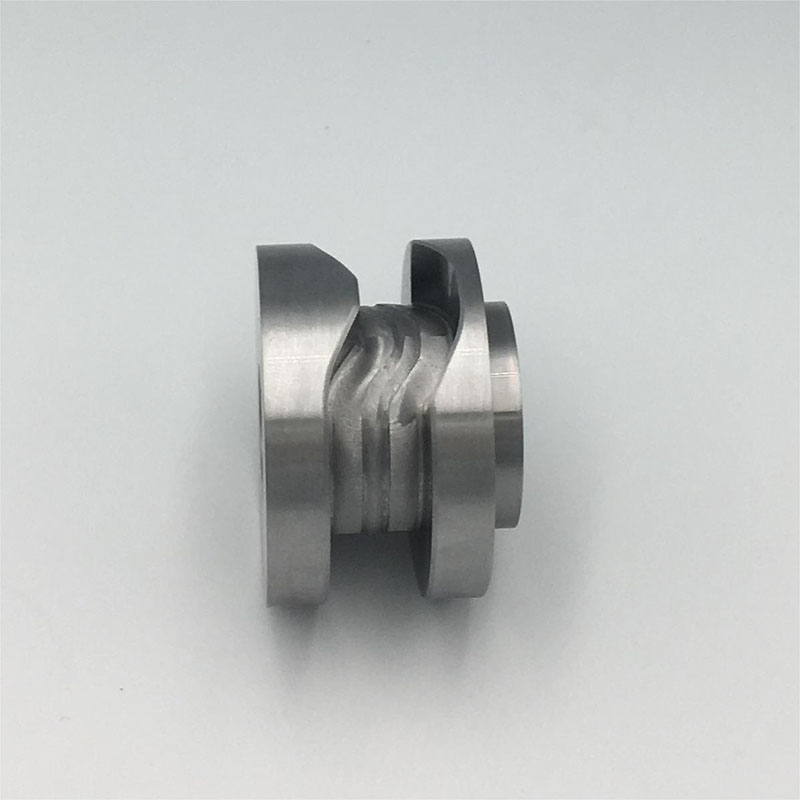

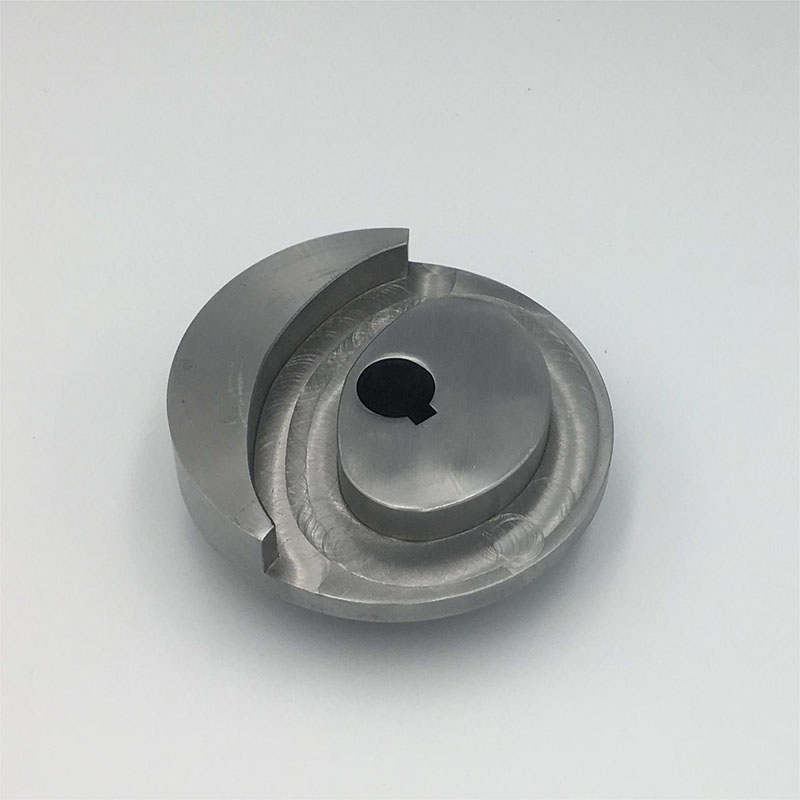

Stainless Steel Cams: The Durable Core of Precision Transmission

In automated machinery and precision control systems, cams, as core transmission components for achieving specific motion trajectories and action sequences, directly determine the reliability and long-term stability of equipment operation through their profile accuracy and material durability. We focus on providing customers with precision cam solutions capable of enduring operation in harsh environments through five-axis precision machining technology combined with the superior properties of stainless steel.

Five-Axis Linkage Machining: Precise Reproduction of Complex Motion Curves

The core of stainless steel cams lies in the precision manufacturing of their non-circular profiles. Traditional machining methods struggle to accurately shape continuously changing curves in three-dimensional space, especially when dealing with the high strength and work-hardening properties of stainless steel. Our five-axis linkage CNC machining center is equipped with a dedicated stainless steel cutting system and intelligent machining software, enabling precise milling of cylindrical cams, end-face cams, and spherical cams directly based on motion equations or 3D models. By optimizing toolpaths and cutting parameters, we ensure that the lift error, return accuracy, and transition surface smoothness of each cam profile meet micron-level control standards, perfectly reproducing the motion laws required by the design.

Full-Process Performance Verification System

We have established a closed-loop quality control system encompassing motion simulation analysis, material selection, process formulation, and finished product testing. During the development phase, we utilize dynamics software to simulate and analyze the cam-follower system, optimizing the profile curves to reduce impact and wear. During production, we employ high-precision profile measuring instruments, 3D optical scanning systems, surface hardness testers, and dedicated durability testing platforms to comprehensively inspect the actual profile, surface quality, hardness distribution, and dynamic performance of the cams. This system ensures that every stainless steel cam possesses precise, stable, and low-noise transmission performance.

Material Advantages and Surface Strengthening

We select high-performance stainless steels such as 304, 316, and 17-4PH to manufacture our cams. These materials not only provide excellent corrosion resistance but also achieve ideal comprehensive mechanical properties through subsequent heat treatment. For high-wear applications, we offer surface nitriding, PVD coating, or special alloy welding strengthening processes, significantly improving the hardness and fatigue resistance of the working surface. This allows the cams to maintain a long service life and stable transmission accuracy even under harsh conditions such as high speed, heavy load, or the presence of dust and moisture.

Customized Development and Technical Support

We not only offer standard cam products, but also excel at fully customized design and manufacturing based on our clients' specific motion requirements. Whether it's complex polynomial motion curves or spatial profiles requiring special followers, our engineering team can provide complete solutions from concept to product. We are committed to becoming our clients' long-term technical partner in the field of precision transmission.

With five-axis precision machining as our core technology, integrating motion control theory, materials science, and surface engineering, we are dedicated to providing our clients with stainless steel cam solutions that offer precise transmission, reliable performance, and long service life. Choosing us means choosing to equip your automation equipment with a robust and reliable "motion heart," ensuring consistent precision in every transmission.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
