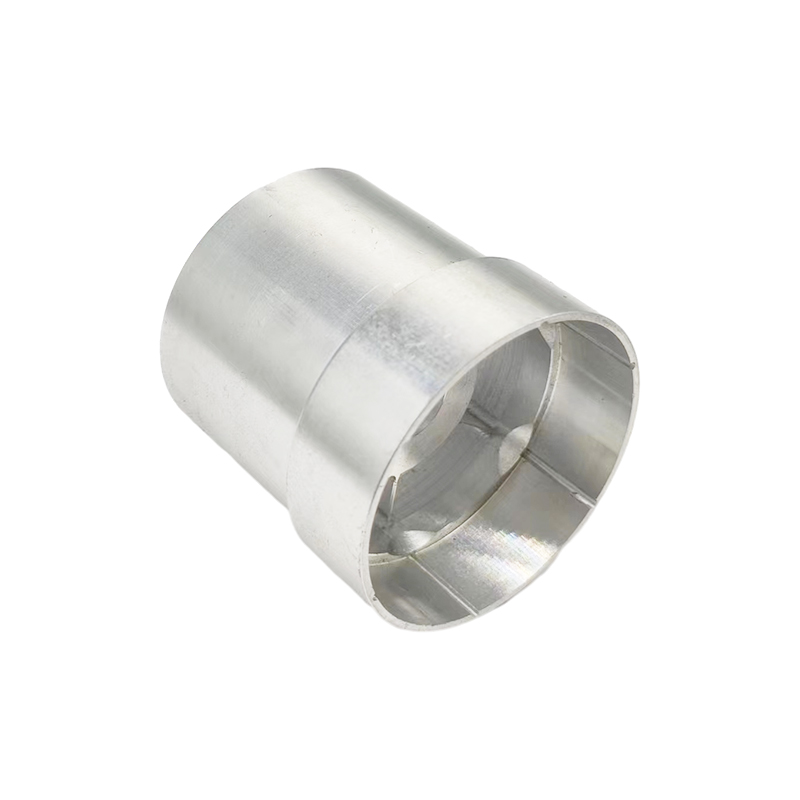

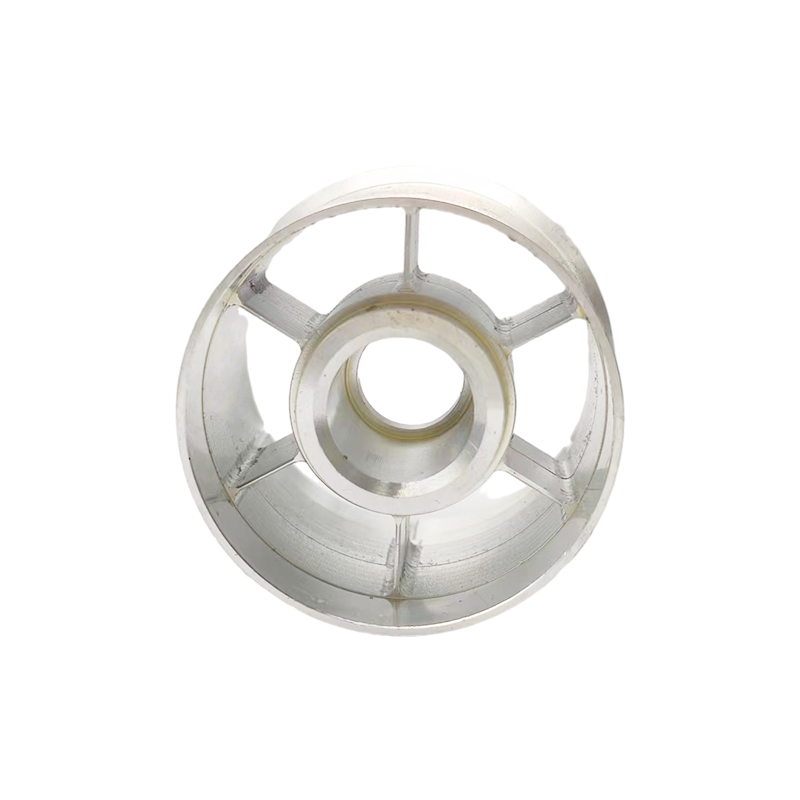

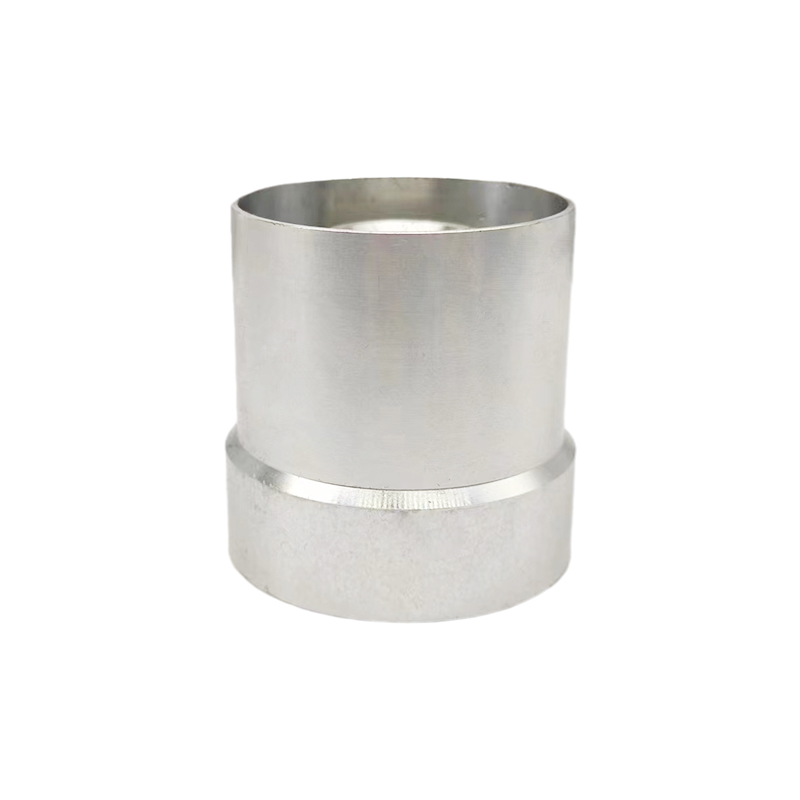

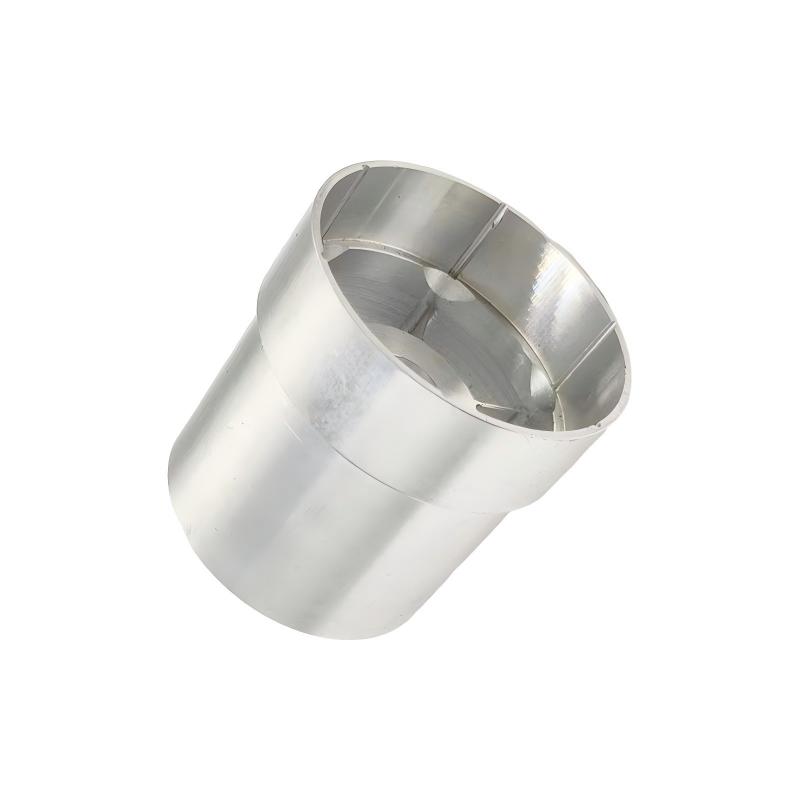

Custom-made Aluminum Ductwork Parts on High-Precision Four-Axis CNC Lathes

Ganyuan Factory has focused on manufacturing stainless steel guide rail parts for over twenty years. Relying on high-precision CNC equipment and laser measurement systems, we strictly control the straightness accuracy, surface hardness, and installation tolerances of the guide rails to ensure stable operation and corrosion resistance under long-term loads.

Product description

CNC Machining Technology Enables Superior Advantages in Aluminum Duct Systems

In the field of modern ventilation, air conditioning, and cleanroom systems, ducts, as the arteries of airflow, directly impact system energy consumption and operational quality due to their geometric precision, sealing performance, and aerodynamic efficiency. Traditional duct manufacturing methods are often limited by insufficient precision and design constraints. However, Ganyuan Factory, with over twenty years of experience in CNC machining, has achieved a revolutionary technological breakthrough in aluminum duct component manufacturing, thanks to its high-precision CNC milling machines, multi-axis machining centers, and 3D measurement systems, achieving a perfect fusion of precision manufacturing and efficient mass transfer.

I. High-Fidelity Molding of Complex Flow Channel Structures

Modern high-efficiency duct systems often employ complex designs such as variable cross-sections, multi-branch structures, or integrated plenum chambers. Traditional manual or mold-forming methods struggle to guarantee precision.

Precise 3D Shaping: Five-axis CNC machining enables high-precision milling, cutting, and shaping of aluminum alloy sheets or profiles, easily achieving precise machining of curved transitions, irregular interfaces, and internal flow guidance structures, ensuring a high degree of consistency between the airflow channel and the design model.

Integrated Component Manufacturing: Flanges, connecting slots, inspection ports, and other structures can be integrated into traditional duct sections, significantly reducing splicing points, improving structural strength from the source, and reducing the risk of air leakage.

II. Superior Sealing and Airtightness Guarantee

The airtightness of the duct system is a key indicator affecting energy consumption and cleanliness. CNC machining provides fundamental assurance through precision control.

Microscopic Fit Precision: CNC machining ensures high consistency in the flatness of the end faces, the accuracy of flange hole positions, and the geometry of the interfaces for each duct section, allowing the sealing material to be evenly pressurized and achieving long-term reliable high-level airtightness performance.

III. Achieving a Balance Between Lightweight Design and Strength Optimization

Aluminum alloys combine lightweight and good strength, and CNC machining further unlocks their material potential.

Equal Strength Topology Optimization: Through a combination of finite element analysis and CNC programming, precise material reduction can be performed in non-load-bearing areas, achieving lightweight duct design, reducing lifting load and material costs.

CNC machining technology is redefining the manufacturing standards for high-end aluminum ducts, elevating traditional ventilation ducts to precision functional components. Driven by partners with complete CNC technology chains and rich engineering experience, such as the Ganyuan factory, each section of CNC-precision machined aluminum duct is not only a channel for air, but also a "precision organ of the respiratory system" that integrates aerodynamic design, lightweight structure and digital manufacturing technology.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
