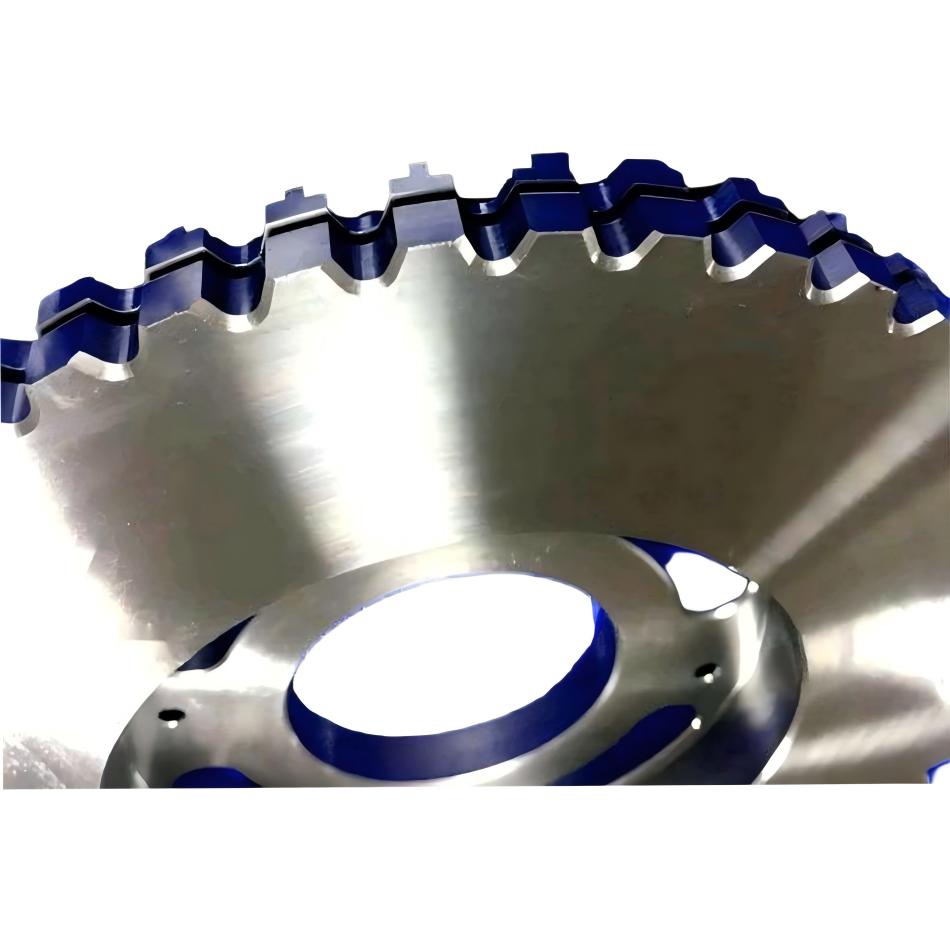

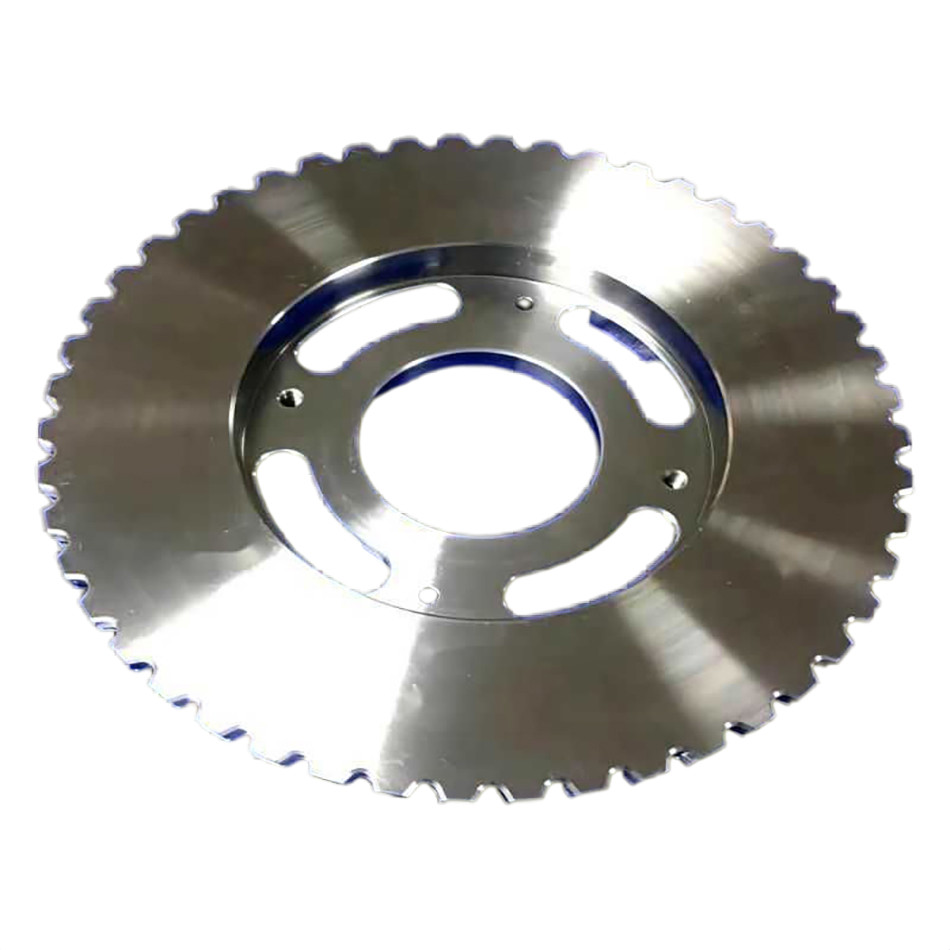

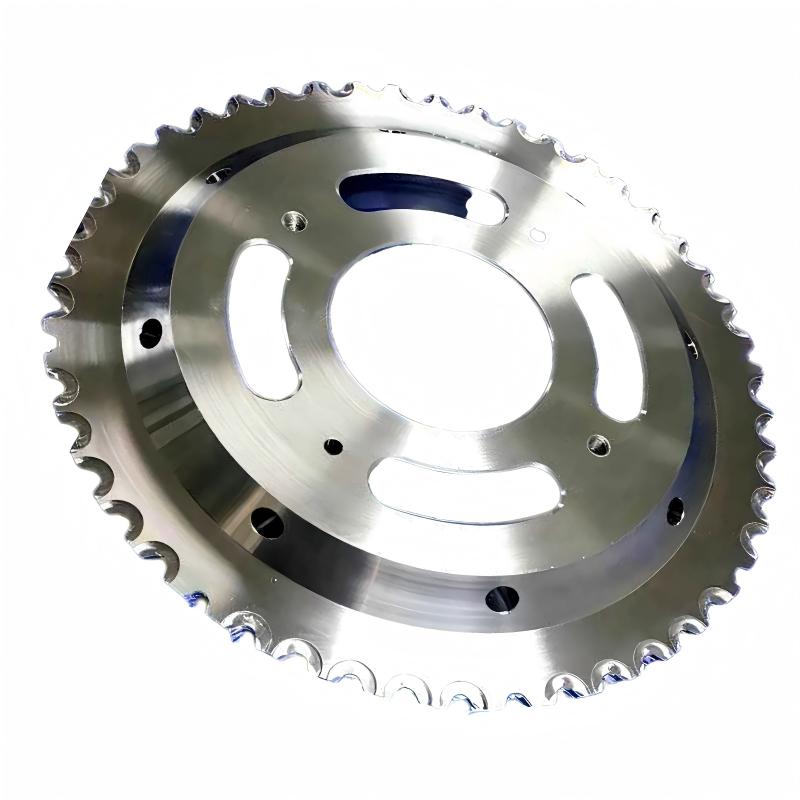

CNC-machined Stainless Steel Ratchet Wheels - Metal Instrument Accessories

We specialize in five-axis precision machining of stainless steel ratchet wheels, equipped with high-end five-axis CNC machine tools and professional testing systems. From complex tooth profile design to mass production, we provide end-to-end production services, ensuring that each ratchet possesses precise meshing performance, excellent wear resistance, and long-term corrosion resistance, meeting the stringent requirements of precision machinery for high-load transmission and durable operation.

Product description

Stainless Steel Ratchets: A Core Force in Precision Transmission

As a key component of modern mechanical transmission systems, the performance of stainless steel ratchet directly determines the reliability, safety, and long-term operational capability of equipment. In critical fields such as precision instrument adjustment and aerospace mechanisms, ratchet design has evolved from a simple tooth structure into a precision functional component with stringent requirements for materials, precision, and durability. Precision machined products, represented by stainless steel ratchets, have become the preferred choice for high-performance, high-reliability transmission solutions due to their excellent corrosion resistance, high strength, and the high precision and consistency brought by CNC machining.

Core Technical Features of CNC Machining for Stainless Steel Ratchets

1. Perfect Forming of Precision Tooth Profiles from High-Hardness Materials

Stainless steel (such as 304, 316, or 17-4PH) possesses high strength and toughness, making its machining particularly challenging. CNC multi-axis machining centers, using carbide or CBN tools and optimized cutting parameters and cooling schemes, can precisely mill or turn the meshing surface and root arc of each tooth of a ratchet, ensuring tooth profile accuracy, indexing uniformity, and surface finish, controlling tooth profile errors to the micrometer level. This is the physical basis for ensuring the precise movement of the ratchet during repeated engagement and preventing tooth slippage or jamming.

2. Synergistic Control of Microstructure and Macroscopic Performance

Ratchets not only require precise tooth profiles, but their overall structure, such as the hub, shaft hole, and spring groove, also needs high precision. CNC machining can complete the machining of all key features in a single setup, ensuring coaxiality, perpendicularity, and positional accuracy between features. For ratchets requiring high fatigue life, CNC technology can also improve their wear resistance and fatigue resistance by controlling machining texture and surface residual stress.

Core Advantages of CNC Machining for Stainless Steel Ratchets:

1. Exceptional Reliability and Extended Service Life

Thanks to the inherent corrosion resistance of stainless steel and the high precision and strength provided by CNC machining, these ratchet wheels maintain their transmission function for extended periods even in humid, salt spray, or high-temperature environments. This significantly extends equipment maintenance cycles and service life, making them particularly suitable for critical mission scenarios with extremely high reliability requirements.

2. Unparalleled Precision Consistency and Interchangeability

Digital manufacturing ensures that every stainless steel ratchet wheel is a perfect reproduction of the design drawings. Extremely high dimensional consistency and performance stability guarantee complete interchangeability of parts in mass assembly, simplifying equipment assembly and subsequent maintenance. This is especially suitable for systems requiring modular replacement or precision adjustment.

In summary, CNC machining technology overcomes the machining challenges of stainless steel, achieving precise forming of the complex tooth shape and structure of ratchet wheels and fully releasing the performance potential of stainless steel. This transforms the design concept of high reliability and long service life into high-quality transmission components capable of stable operation in extreme environments, becoming an indispensable "reliable tooth" in modern precision industrial equipment.

Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
3. According to the requirement of customer.



FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
