Stainless steel pinwheel

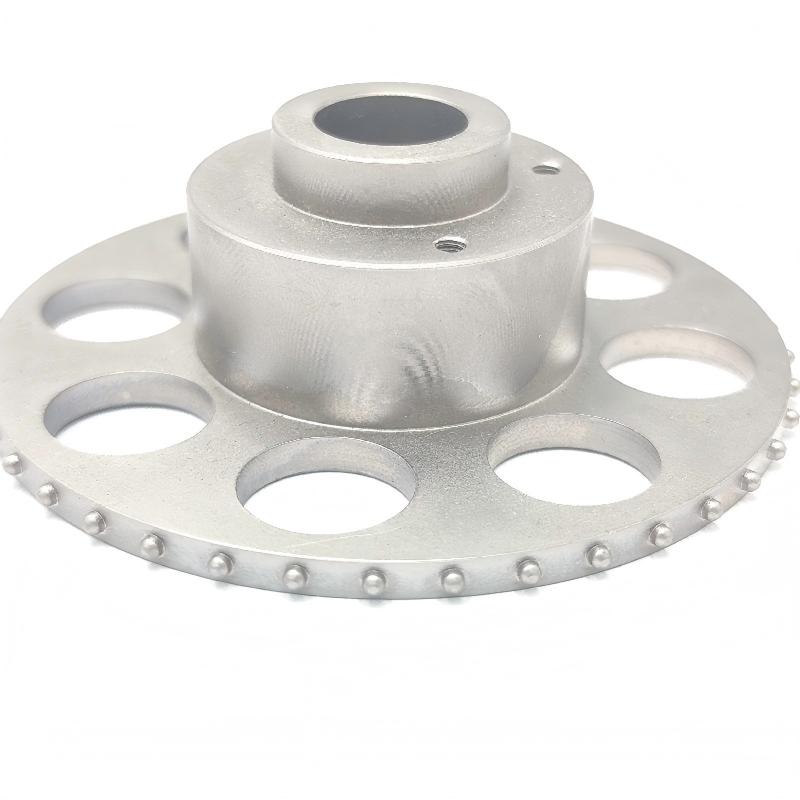

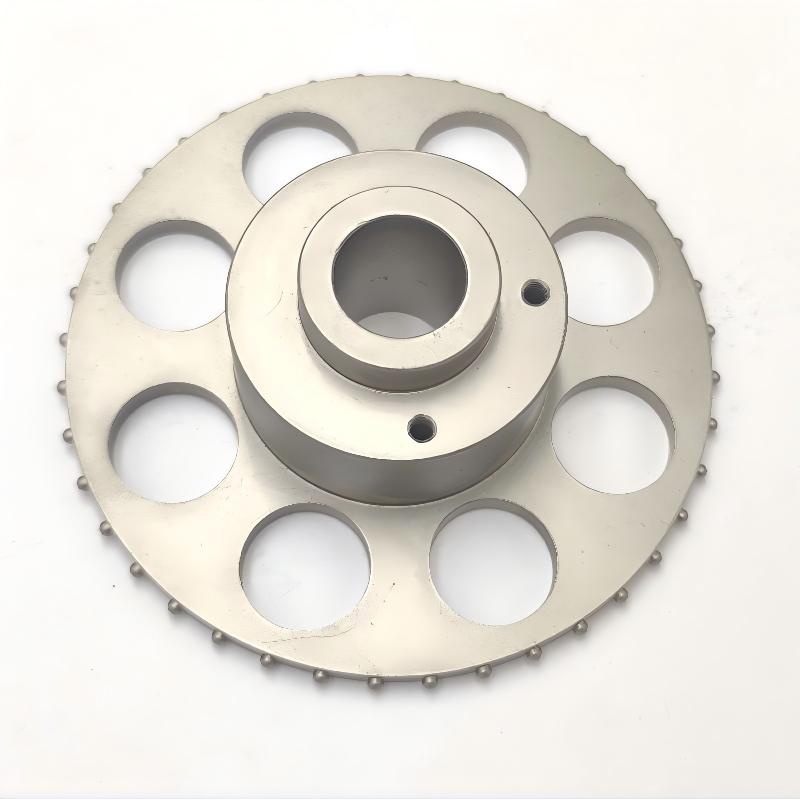

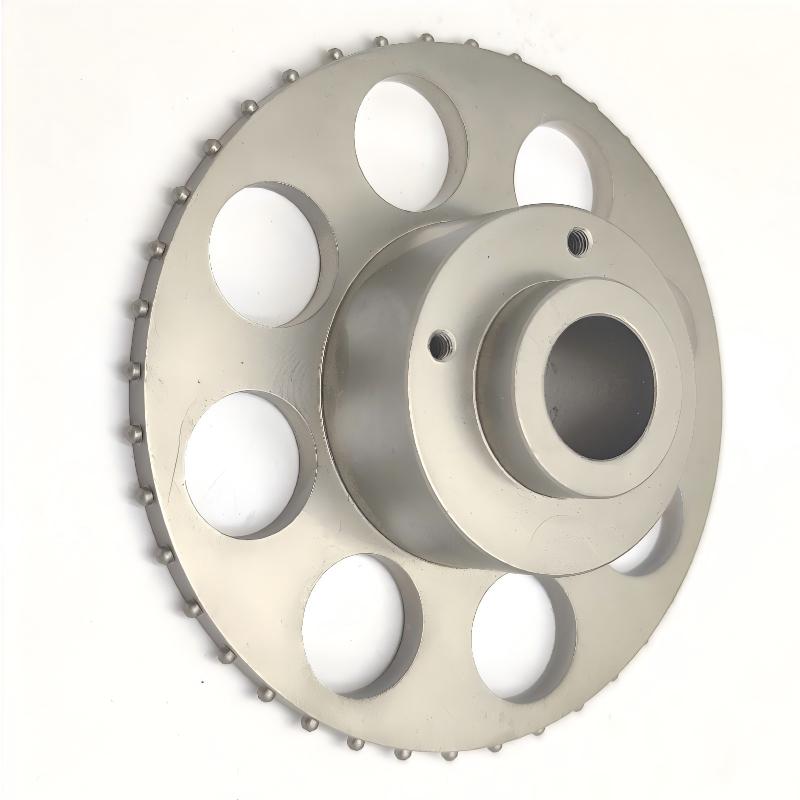

High-end precision stainless steel pinwheel CNC 5-axis machined parts

Ganyuan Factory has focused on machining stainless steel pinwheel parts for over twenty years. Relying on high-precision CNC equipment and a professional testing system, we strictly control tooth profile accuracy, surface hardness, and overall wear resistance, ensuring that our pinwheels possess excellent corrosion resistance, stability, and long service life in precision transmission applications.



Product description

Production Type Customized production and processing Material stainless steel
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000



On the Path to Superior Performance of Stainless Steel Needle Wheels through CNC Machining

As a core component of precision transmission systems, stainless steel needle wheels play a crucial role in fields with stringent requirements for cleanliness and durability, such as machinery and automated equipment, thanks to their excellent corrosion resistance, high strength, and long lifespan. However, fully translating the material advantages of stainless steel into superior performance in needle wheel parts presents extremely high challenges to the manufacturing process. Based on over twenty years of professional CNC machining experience, we have established a complete technical system from material selection to precision manufacturing, ensuring that every stainless steel needle wheel meets both performance and precision standards.

I. The Ultimate Pursuit of Precision Tooth Forming

The smoothness and efficiency of needle wheel transmission directly depend on the geometric accuracy of each tooth. Addressing the significant work hardening tendency of stainless steel, we employ a multi-axis CNC center in conjunction with specialized coated cutting tools, using constant speed cutting and micro-lubrication technology to ensure that the involute profile error of each tooth is less than 0.005mm.

II. Control of Microstructural Integrity

Stainless steel is prone to developing a work-hardened layer during machining, affecting the lifespan of the needle wheel. We have developed a phased machining process: first, rough machining is completed with optimized parameters; then, stress is eliminated through precision heat treatment; and finally, the tooth surface is finished using mirror-cutting technology.

III. Integrated Realization of Complex Structures

Modern pinwheel designs often integrate multiple functional structures such as internal gear rings, positioning flanges, and mounting holes. Our five-axis CNC machining center can complete the precision machining of all features in a single setup, with a positional accuracy of ±0.008mm between features. For large pinwheels with a diameter of 300mm or more, a segmented variable parameter machining strategy is adopted, combined with real-time feedback from an online measurement system, to control thermal deformation within 0.015mm, ensuring consistency in the machining of large-scale pinwheels.

With the continuous advancement of precision transmission technology, stainless steel pinwheels have been upgraded from traditional transmission components to core components of high-performance systems. Through systematic innovation in CNC machining processes, we have not only broken through the bottlenecks in stainless steel material processing but also set new standards in terms of precision retention, service life, and reliability.
