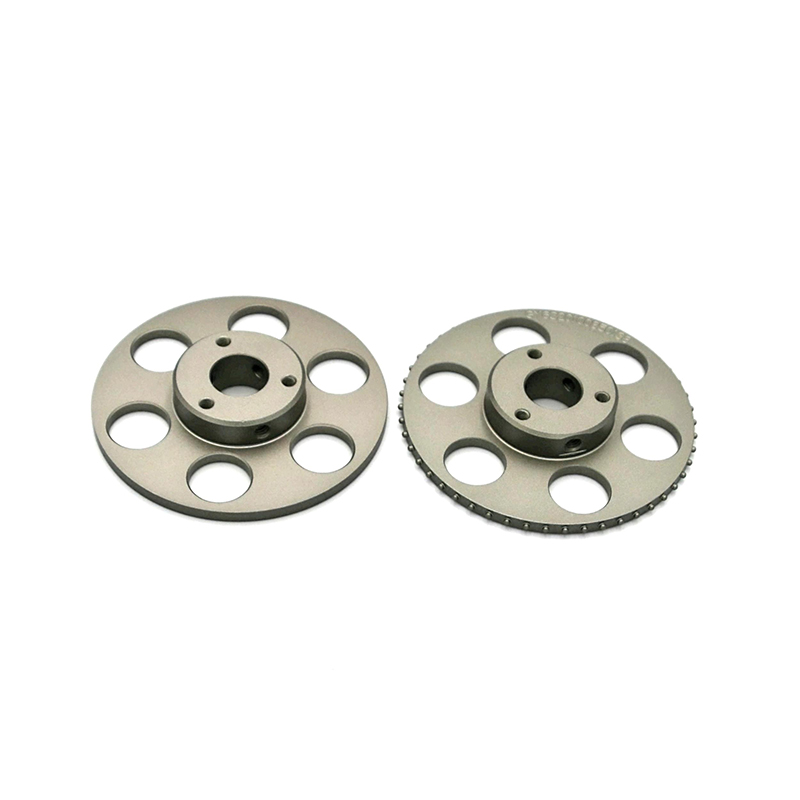

Stainless steel pinwheel

Custom-made Stainless Steel Pinwheels Machined on High-Precision CNC Lathes

Ganyuan Factory has focused on processing stainless steel pinwheel parts for over 20 years. Relying on high-precision CNC equipment and a professional testing system, we strictly control the precision of the tooth profile, surface hardness, and overall wear resistance to ensure that the pinwheel has excellent corrosion resistance, stability, and long service life in precision transmission.



Product description

Production Type Customized production and processing Material stainless steel
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000

CNC Precision Stainless Steel Pinwheel Machining Experts

As a core load-bearing component in precision reduction and transmission equipment, the machining accuracy and material properties of stainless steel pinwheels directly affect the equipment's service life and transmission reliability. We specialize in the research and development and manufacturing of various stainless steel pinwheels, relying on advanced multi-axis CNC equipment and professional hardened tooth surface machining processes to provide high-load-bearing, high-wear-resistant, and high-precision stainless steel pinwheel solutions for the high-end equipment industry.

Professional CNC Stainless Steel Pinwheel Machining Technology

Equipped with high-precision gear hobbing machines, CNC gear shaping machines, and dedicated pin gear grinding equipment, we can machine various precision stainless steel pinwheels with modules of 0.5-4, diameters of φ30-φ500mm, and precision grades up to ISO 6. Through optimized multi-axis linkage shaping and constant temperature process control, we ensure that the cumulative pitch error of the pin teeth does not exceed 0.01mm, the radial runout of the gear ring is controlled within 0.015mm, and the tooth surface roughness reaches Ra0.6μm.

Special Stainless Steel Materials and Hardening Processes

We select high-hardness stainless steel materials such as 440C, 17-4PH, and 420J2, combined with advanced surface strengthening processes such as vacuum quenching and deep cryogenic treatment. By precisely controlling the heat treatment gradient, we achieve a surface hardness of HRC55-60 while maintaining a core toughness of HRC28-35. For different working conditions: 440C is used for high wear resistance environments; 17-4PH with surface passivation is used for high corrosion resistance environments; and special heat-resistant stainless steel materials are used for high-temperature applications.

Comprehensive Quality Inspection System

We have established a complete needle wheel inspection process, equipped with professional equipment such as a coordinate measuring machine, gear measuring center, and metallographic microscope. In addition to routine dimensional inspection, we also conduct tooth profile and direction analysis, material composition inspection, and dynamic meshing performance testing. Each product has an independent quality file, achieving full-process quality traceability from raw materials to finished product delivery.

Our CNC precision stainless steel needle wheels are widely used in high-tech fields such as industrial robot reducers, aerospace transmission systems, precision instruments, and high-end automation equipment. With our professional hardened gear surface machining technology and extensive experience in manufacturing precision transmission components, we are committed to providing every customer with the highest quality pinwheel products, and to providing reliable core component support for high-end transmission systems through precision manufacturing technology.



Company Profile

         We are a manufacturer integrating industry and trade. We have more than 20 years of experience in production technology. We are located in Dongguan City, Guangdong Province, China. We have advanced high-end professional production and processing technology, and are committed to innovative R&D and production. After years of market tempering and exploration, it has high-quality technical management personnel, experienced designers, R&D personnel and a perfect company management system.

5-axis CNC workshop

         Our factory has a plant area of about 2,000 square meters and masters core processing technologies. It has high-end precision production equipment: CNC lathes, 5-axis CNC, 4-axis CNC, stamping equipment, die-casting equipment, etc.​

Auxiliary production equipment: electroplating, anodizing, hard anodizing and surface treatment. We have complete testing equipment: sophisticated three-dimensional testing, two-dimensional testing, hardness tester, height meter, projector and other conventional testing equipment. If you are interested in our products, please contact me and I will provide the best price support and quality service.

2D inspection equipment

Product Packaging

Packaging Details

  1. Commercial packaging: 1pc/plastic bag + color box +carton + pallet;
  2. Industrial packaging: (1). plastic tube + carton + pallet; (2). plastic bag + kraft paper + carton + pallet;
  3. According to the requirement of customer.

FAQ

Q1: Where can I get product & price information?

A1: Send us an inquiry e-mail, we will contact you once we received your mail.

Q2: How long will I get the sample?

A2: Depends on your specific items, within 3-7 days generally.

Q3: What kinds of information do you need for a quote?

A3: Kindly please provide the product drawings in PDF, if provide in STEP or IGS will be better.

Q4: What are the payment terms?

A4: We accept 50% as a payment deposit, when the goods are prepared, we shoot photos or videos for your check, and then you can pay the balance. For small quantities, we accept Paypal, the commission will be added to the order. For big amounts, T/T is preferred.

Q5: How to deliver the goods?

A5: We deliver the products by courier company.

Q6: Are you a trading company or factory?

A6: We are factory direct with 17 experienced engineers and more than 50 employees as well approximate 3,000m2 workshop area.

Q7: What shall we do if we don't have drawings?

A7: Please send your sample to our factory, then we can copy and provide you better solutions. If send us pictures or drafts with dimensions(Length, Height, Width), CAD or 3D file will be made for you.

Q8: Can we get some samples before mass production?

A8: Absolutely yes.

Q9: Will my drawings be safe after sending them to you?

A9: Yes, we will keep them well and won't release them to the third party without your permission.

Q10: Is it possible to know the operation status of my products without visiting your company?

A10: We will offer a detailed production schedule and send weekly reports with digital pictures and videos which show the machining progress.

Q11: If you make poor quality goods, will you refund?

A11: In fact, we won't take risks to produce poor-quality products. Meanwhile, we manufacture good quality products till you are satisfied
