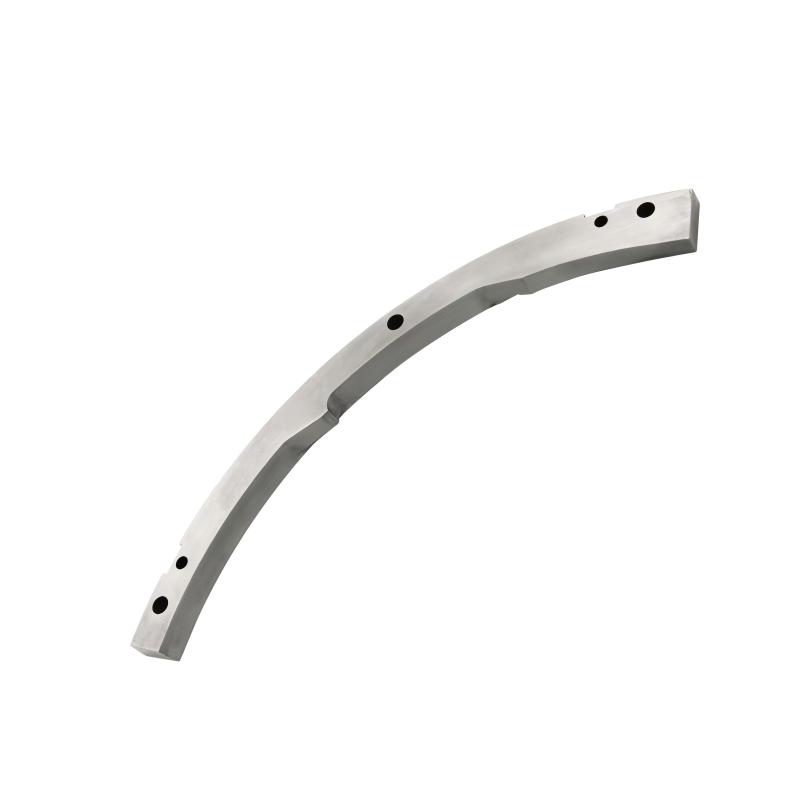

Stainless steel guide rail

Custom stainless steel guide rails are manufactured using 5-axis CNC milling

Ganyuan Factory has focused on precision guide rail manufacturing for over 20 years. Leveraging high-precision CNC equipment and a professional testing system, we rigorously guarantee the straightness, surface hardness, and corrosion resistance of our stainless steel guide rails. We specialize in the custom machining of various linear guides, sliding guides, and irregularly shaped guide components.



Product description

Production Type Customized production and processing Material stainless steel
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000

Stainless Steel Guide Rails: The Core Foundation of Precision Linear Transmission

The Supporting Basis for High-Precision Motion Control

As core moving components in modern automated equipment, precision machine tools, and high-end instruments, stainless steel guide rails play a crucial role in harsh environments such as machinery manufacturing and semiconductor processing. Their superior corrosion resistance, high rigidity, and long service life make them the preferred choice for precision linear motion systems.

Technological Innovation of Five-Axis CNC Machining

Five-axis CNC technology has brought a fundamental revolution to the precision manufacturing of stainless steel guide rails. Through a five-axis linkage control system, the machine tool can complete complex processes such as datum surface machining, raceway forming, and mounting hole positioning in a single setup. For complex circular arc raceways, variable cross-section guide rails, and spatial curved surface structures, the five-axis system ensures optimal cutting conditions for each machined surface through continuous adjustment of tool posture, achieving micron-level contour accuracy control.

Precision Forming of Complex Raceways

For stainless steel materials with different hardnesses, such as 304, 440C, and 17-4PH, five-axis CNC employs an intelligent machining strategy. A dedicated CAM system automatically generates optimized layered machining paths based on the guide rail's three-dimensional model. For precision raceways, the system utilizes a high-speed spindle and specialized forming tools to achieve precision forming of V-shaped, arc-shaped, or flat raceways in a single operation.

Wide Application Value

In the sliding systems of high-end imaging equipment, the motion platforms of precision measuring instruments, and the conveyor systems of automated production lines, five-axis CNC-machined stainless steel guideways are demonstrating superior performance. Their precise geometric accuracy, excellent motion smoothness, and long service life provide a fundamental guarantee for the reliable operation of various precision equipment.

Industry Impact and Sustainable Development

Five-axis CNC technology not only solves the manufacturing challenges of stainless steel guideways but also redefines the quality standards for precision transmission components. It perfectly combines design complexity with manufacturing precision, driving linear transmission technology towards higher precision and reliability, providing solid technical support for the innovation and upgrading of modern precision manufacturing, and becoming an important driving force for the progress of industrial automation.
