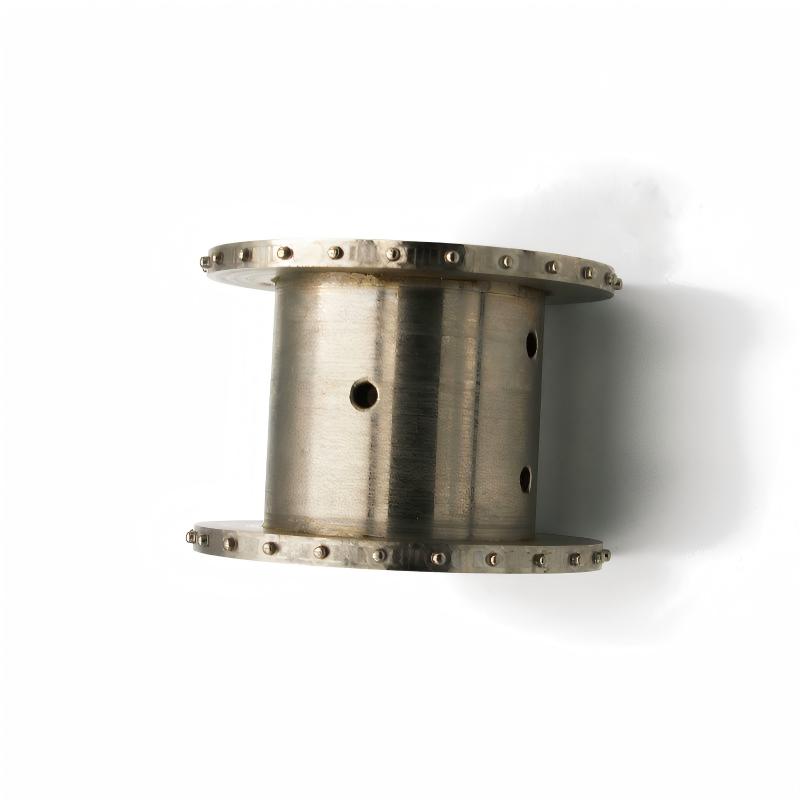

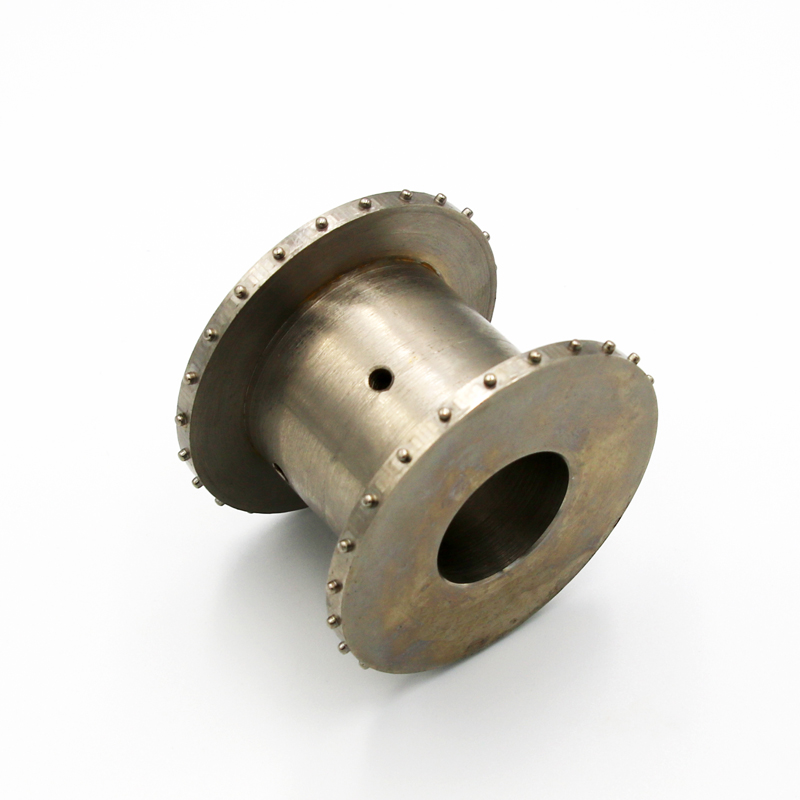

Stainless steel double-row gears

High-quality stainless steel double-row gear parts, CNC 5-axis custom machining



Ganyuan Factory has focused on precision gear manufacturing for over 20 years, possessing leading technology in the processing of stainless steel double-row gears. Relying on high-precision CNC machine tools and coordinate measuring equipment, we strictly control tooth profile accuracy, axial positioning, and overall rigidity to ensure smooth transmission, strong load capacity, and long corrosion resistance of the double-row gears.



Product description

Production Type Customized production and processing Material

stainless steel
Workmanship CNC lathe machining, five axis CNC machining, polishing Applied to Mechanical components, etc
Size

D180*90



 Proofing time

7-15
Precision

±0.02mm

 Do you want to make a sample Yes

OEM/ODM

OEM ODM CNC machining services

 Place of Origin Dongguan, China
type Manufacturers/factories and trading companies Main products Numerical control part; Processing parts; stainless steel parts
Management system certification

ISO 9001:2015

 Production capacity

 100000

Stainless Steel Double-Row Gear Components: A Dual Revolution in Precision Transmission



Core Components of Complex Transmission Systems
Stainless steel double-row gear components serve a dual transmission function in precision machinery, achieving power splitting, speed change, or synchronous control through two rows of precisely meshing teeth. These components are widely used in high-precision transmission systems in textile machinery, printing equipment, and automated packaging production lines. Their unique structural design significantly improves transmission efficiency and space utilization.



Dual Breakthrough in Five-Axis CNC Machining
Five-axis CNC technology provides a revolutionary solution for the manufacturing of stainless steel double-row gears. Through the coordinated control of five motion axes, the machine tool can complete all machining processes for both rows of gears in a single setup. Addressing the unique axial offset requirements and phase accuracy of double-row gears, the five-axis system dynamically adjusts the tool angle, ensuring micron-level precision in the relative position of the two rows of teeth.

Intelligent Forming of Precision Structures
For stainless steel materials such as 316L and 17-4PH, five-axis CNC employs a composite machining strategy. After the first row of gears is machined, the system uses a high-precision rotary table for precise indexing, initiating the milling operation for the second row of gears. A smart cooling system, working in conjunction with specialized cutting tools, effectively controls thermal deformation during machining, ensuring the parallelism and coaxiality of the two rows of gear teeth.



Precise Control of Technical Details

During machining, the five-axis CNC system monitors the cutting status in real time. For the meshing requirements of double-row gears, the system uses a laser measuring device to perform online inspection of the first row of gears, automatically correcting the machining parameters of the second row based on the measurement data.

Five-axis CNC technology not only solves the manufacturing challenges of double-row gears but also redefines the quality standards for precision transmission components. It transforms the machining challenges of complex geometries into technological advantages, providing strong technical support for the modern machinery manufacturing industry to develop towards higher precision and higher efficiency, becoming an important engine driving the advancement of industrial transmission technology.
